Installing Starter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Tightening Torques, tightening sequence and assembly overviews for the engine and transmission:

Group 1: → 1X00IN TECHNICAL VALUES
Group 2: → 2X00IN TECHNICAL VALUES
Group 3: → 3X00IN TECHNICAL VALUES

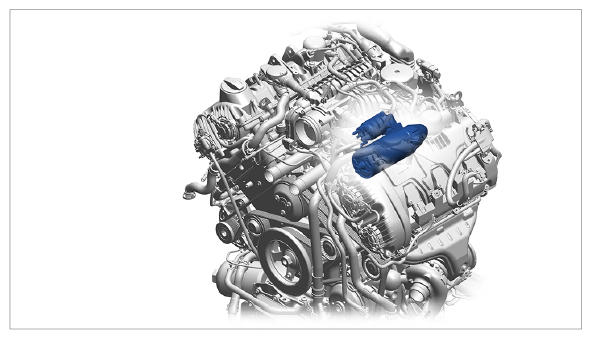

Fig 1: Identifying Starter Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The starter is installed in reverse order to removal.
1. 1.1. Fastening nut securing terminal 50 to starter Tightening Torque 10 Nm (7.5 ft. lb.)
2. 1.2. Fastening screws for starter Tightening Torque 45 Nm (33 ft. lb.) +8 Nm (+6 ft. lb.)
3. 1.3. Fastening nut securing B+ line to starter Tightening Torque 18 Nm (13 ft. lb.)
