Removing Generator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

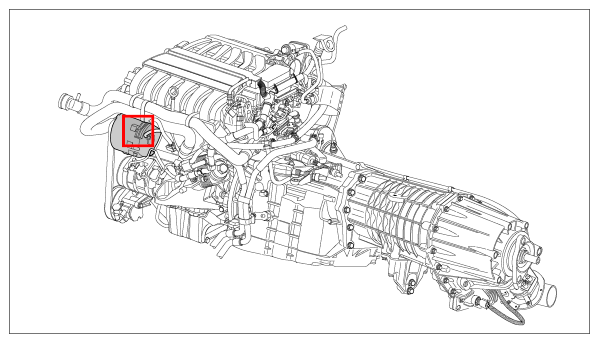

Fig 1: Overview Of Generator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release the connector -1- and unplug it -arrow A- (-arrow B- ).
Screw off fastening nut -2- and pull off the B+ line -3- (-arrow C- ).

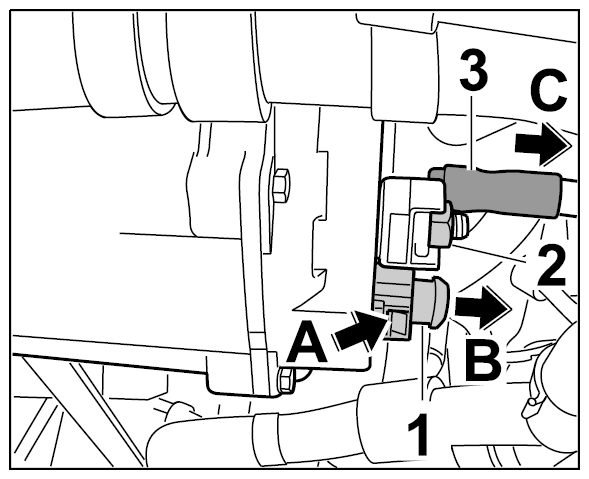

Fig 2: Disconnecting Electric Connections On Generator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -3- and remove the generator to the side -arrow- . Press the generator out of the bracket using a lever if necessary.

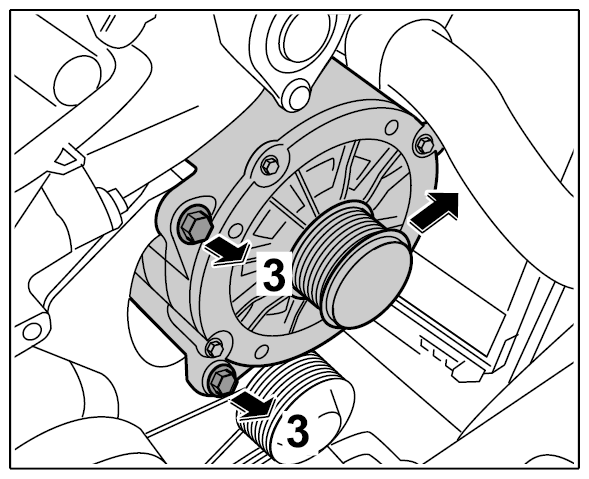

Fig 3: Removing Generator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift generator up and out. Press the upper cooling water hose aside if necessary.
