Removing And Installing Battery Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Caustic fluids

Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

WARNING: Static battery charge

Battery can explode
Electrical discharges

→ Do not rub the battery with a dry cloth.

Information

The battery is located in the battery box under the left front seat .
The vehicle must be supplied with external power at the jump-lead starting points so that the seat can be moved even when the battery is fully discharged . → WM 2706IN EXTERNAL POWER CONNECTION, JUMP-LEAD STARTING (ALL MODELS)

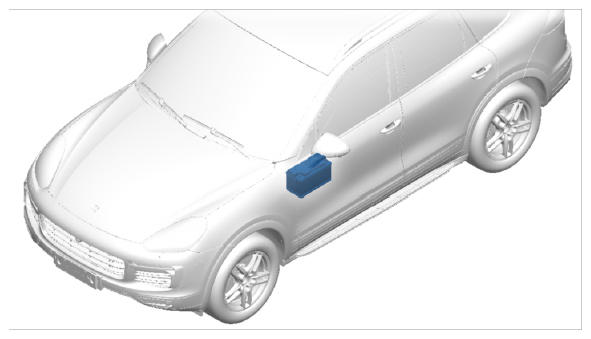

Fig 1: Identifying Battery Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Switch off all loads and remove the ignition key.

Do not disconnect the battery while the engine is running .
Disconnect and reconnect battery with extreme caution .
Do not rub the battery with a dry cloth .

When removing the carpeted floor for the first time, cut along the perforation using a carpet knife.
Unscrew screw -1- and remove air guide -2- .
Open the tension hooks -arrows- on the battery cover -3- using a suitable tool.
Remove battery cover -3- .

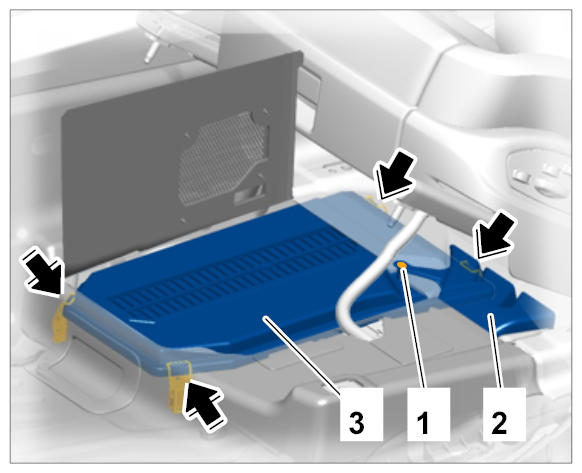

Fig 2: Removing Battery Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The battery cover -3- is installed in reverse order to removal.
Tighten screw -1- . Tightening Torque 2 Nm (1.5 ft. lb.)
