Removing Fuse At E-Box
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High voltage
- Danger of electric shock from live parts
- Risk of serious burns or death
→ Work on the high-voltage battery may only be carried out by a high-voltage technician.
→ Always use insulated tools Insulated Tool Set WE 1593 when working on the high-voltage battery.
→ Observe general warning notes for working on the high-voltage vehicle electrical system. → 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE ELECTRICAL SYSTEM
Information
Always use insulated tools Insulated Tool Set WE 1593 when working on the high-voltage battery and a High-Voltage Cordon WE 1589 when working on a HV work bay.

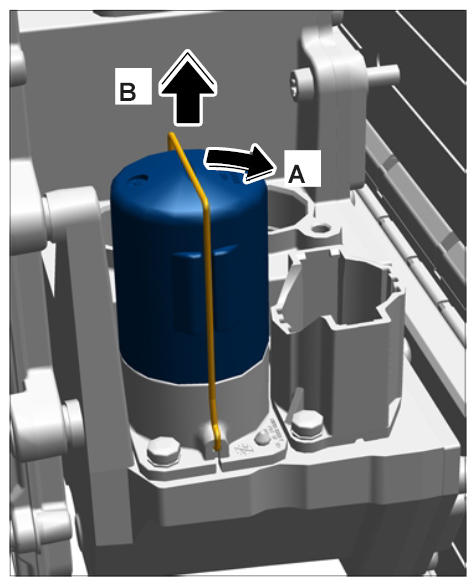

- Open retaining clip -A- and carefully pull the fuse up and out -B- .
