Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Observe warning notes. → 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE VEHICLE ELECTRICAL SYSTEM
  2. Remove high-voltage battery. → REMOVING HIGH-VOLTAGE BATTERY  - section on "Removing"
  3. Set up a High-Voltage Cordon High-Voltage Cordon WE 1589  around the high-voltage workstation.

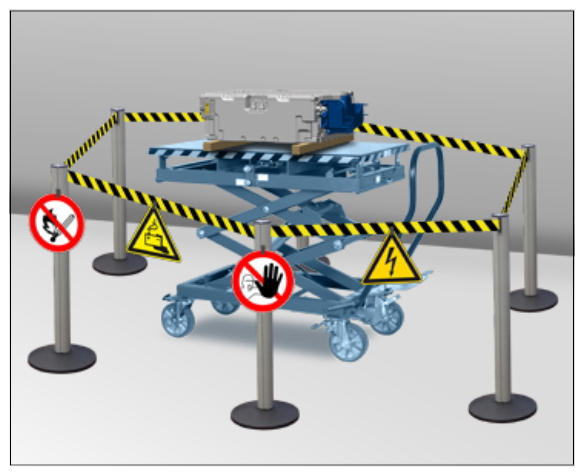

    Fig 1: Caution For Battery Restricted Area
    G09933895Courtesy of PORSCHE CARS NORTH AMERICA, INC.
