Removing Bearing Cover For Balance Shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew the fastening screws to the right -1-  of the coolant pipe -2-  .

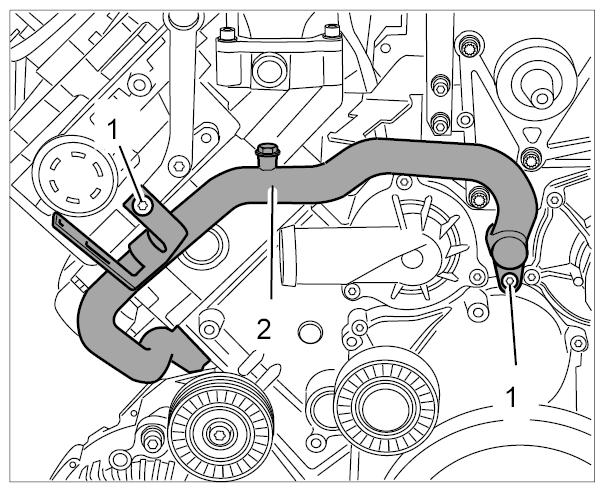

    Fig 1: Identifying Coolant Pipe
    G09932014Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lever the fastening clip on the coolant pipe -2-  up as far as necessary to allow the bearing cover to be removed later.
  3. Lever the cap off the drive-belt deflection roller.

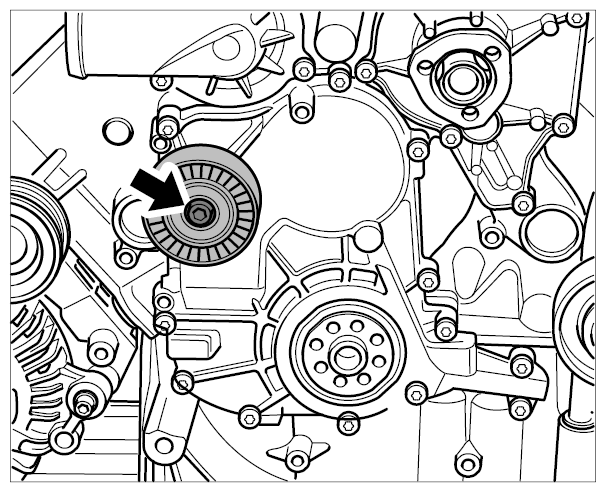

    Fig 2: Locating Drive-Belt Deflection Roller
    G09932015Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew the fastening screws -arrow-  and remove the deflection roller from the bearing cover.
  5. Unscrew the fastening screws from the bearing cover.
  6. Pull off the front bearing cover first at the right -arrows 1-  and then at the left -arrows 2-  .

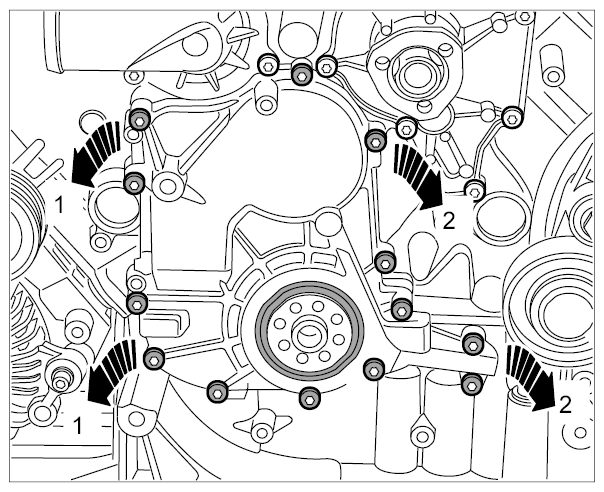

    7. Fig 3: Removing Bearing Cover
    G09932016Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Drive out the sealing ring for the crankshaft pulley when the bearing cover is removed.
