Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fastening screw → Tightening torque: 9 Nm (6.5 ftlb.)
  2. Sealing ring for crankshaft pulley
  3. Bearing cover for balance shaft
  4. Cover for deflection roller
  5. Fastening screw → Tightening torque: 23 Nm (17 ftlb.)
  6. Drive-belt deflection roller
  7. Double screw → Tightening torque: 9 Nm (6.5 ftlb.)
  8. Fastening nut → Tightening torque: 9 Nm (6.5 ftlb.)
  9. Right coolant pipe
  10. O-ring
  11. Dowel pins
  12. O-rings
  13. Seal

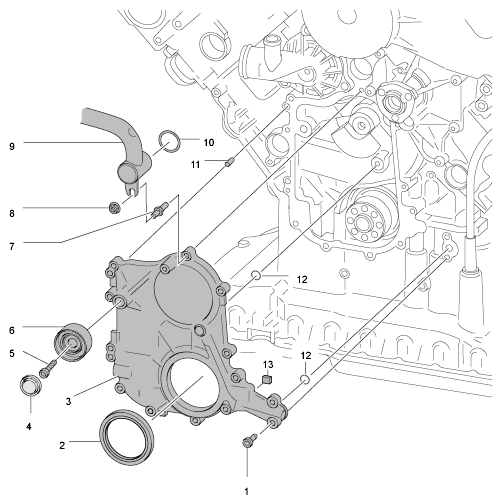

    14. Fig 1: Overview Of Balance Shaft Bearing Cover
    G09932013Courtesy of PORSCHE CARS NORTH AMERICA, INC.
