Removing Positive Crankcase Ventilation Hose

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove positive crankcase ventilation hoses -arrows-  from the cylinder head covers by pressing the release buttons.

    Unscrew screw -1-  and remove adapter with positive crankcase ventilation hoses.

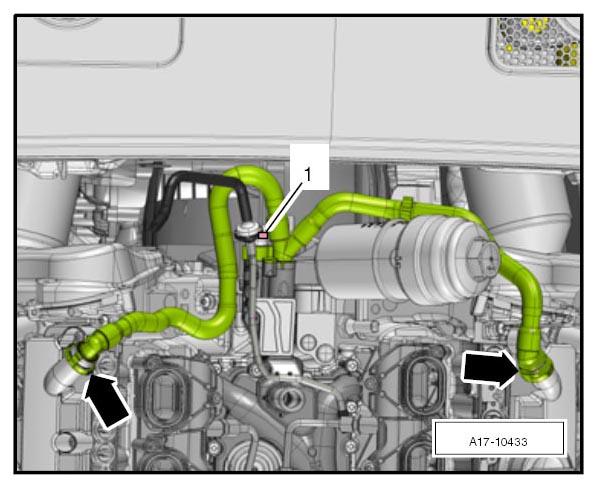

    Fig 1: Locating Positive Crankcase Ventilation Hose
    G09804275Courtesy of PORSCHE CARS NORTH AMERICA, INC.
