Removing Positive Crankcase Ventilation Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove positive crankcase ventilation valve -1-  .
    1. 1.1. Unclip line -2-  from positive crankcase ventilation valve.
    2. 1.2. Unscrew screw on positive crankcase ventilation valve.
    3. 1.3. Pull positive crankcase ventilation valve -1-  off the cylinder head cover.

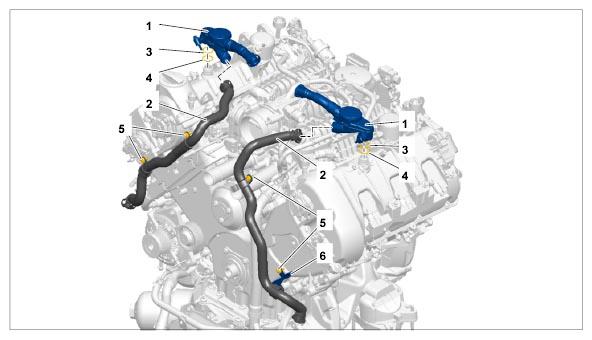

      Fig 1: Identifying Positive Crankcase Ventilation Valve And Line
      G09932008Courtesy of PORSCHE CARS NORTH AMERICA, INC.
