Installing Positive Crankcase Ventilation Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install positive crankcase ventilation valve -1- .
1. 1.1. Check sealing rings -3- and -4- and replace them if necessary.
2. 1.2. Position positive crankcase ventilation valve -1- on the cylinder head cover.
3. 1.3. Secure line -2- .
4. 1.4. Screw in screw and tighten it Tightening torque 10 Nm (7.5 ftlb.)

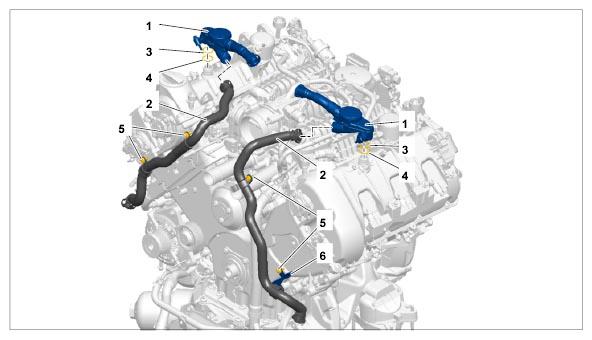

  Fig 1: Identifying Positive Crankcase Ventilation Sealing Ring And Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
