Removing Torque Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove torque support -1-  .
    1. 1.1. Unscrew nuts -4-  and pull out screws -2-  and -3-  .
    2. 1.2. Remove torque support by lifting it upwards.

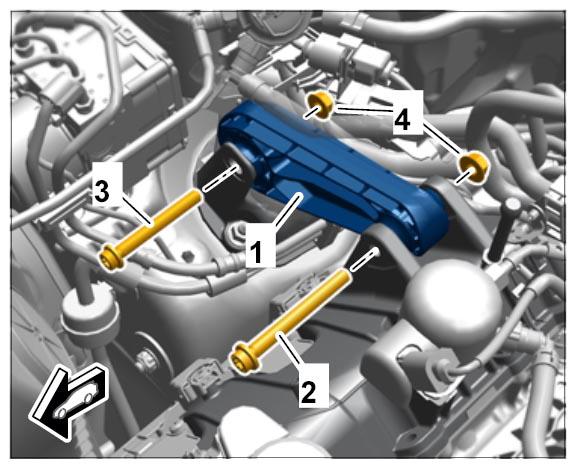

      Fig 1: Identifying Torque Support Nuts And Screws
      G09932003Courtesy of PORSCHE CARS NORTH AMERICA, INC.
