Installing Engine Mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The engine mounts must be aligned using the engine carrier .
The engine mounts differ (left/right) and must not be interchanged .

Install engine mounting.
1. 1.1. Fit engine mounting.
2. 1.2. The dowel pin of the engine mounting must sit correctly into the cut-out on the engine carrier.
3. 1.3. Fit fastening screws -arrows- but do not tighten yet.
4. 1.4. The hexagon nut -A- must always be replaced and tightened to → Tightening torque: 75 Nm (56 ftlb.) .
  Fit the engine carrier to prevent the bearing from turning.

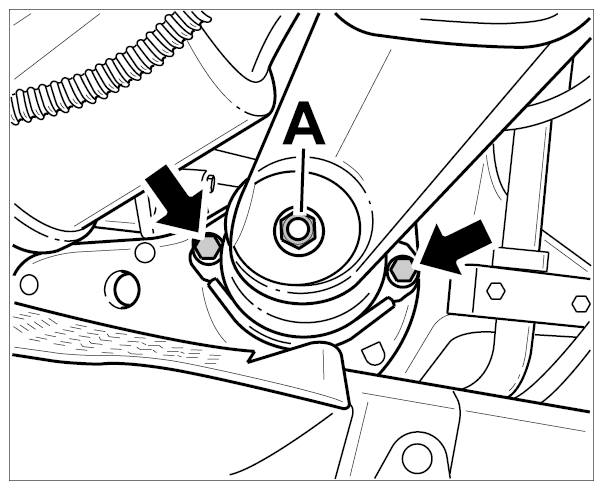

  Fig 1: Locating Engine Mountings Nut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
