Installing Right Engine Mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For tightening torques, tightening sequence and assembly overview, see → 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS

Insert and tighten engine mounting -arrows- .

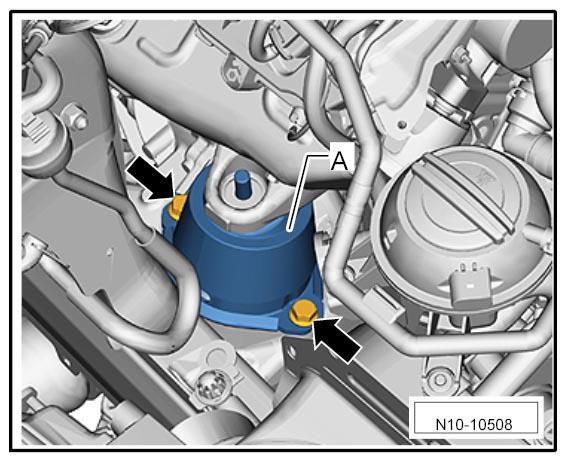

Fig 1: Locating Right Engine Mounting Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slowly lower the engine and guide the threaded bolt into the engine support.
