Assembly Overview - Ancillary Unit Mounts

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For more information, see P ORSCHE E LECTRONIC PAR T "PET"

Screws for engine carrier/replace → Initial tightening: 120 Nm (89 ftlb.) → Final tightening: +180°
Engine mounting
Screw → Tightening torque: 60 Nm (44 ftlb.)
Screw, M10 x 35 → Tightening torque: 40 Nm (30 ftlb.)

4* - Screw, M10 x 45 → Initial tightening: 50 Nm (37 ftlb.) → Final tightening: +90°
5 - Nut → Tightening torque: 75 Nm (56 ftlb.)
6 - Right engine support
7 - Left engine support
8 - Screw → Tightening torque: 40 Nm (30 ftlb.)
9 - Screw → Tightening torque: 20 Nm (15 ftlb.)
10 - Screw → Tightening torque: 60 Nm (44 ftlb.)
11 - Engine mounting
12 - Engine carrier
-

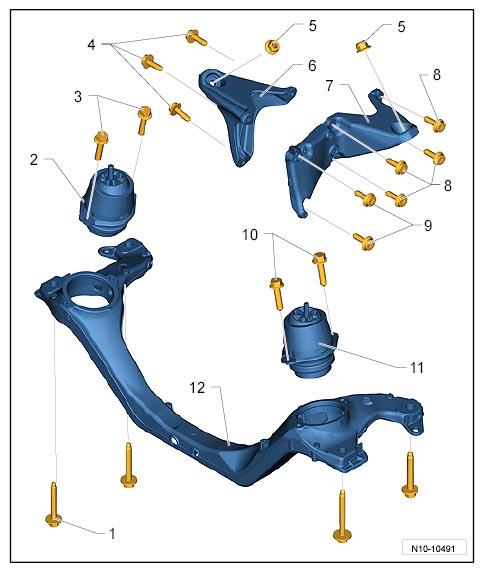

Fig 1: Overview Of Ancillary Unit Mounts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
