Engine Mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Bracket for engine mount, right
Screw, M10 x 45 → Tightening torque: 65 Nm (48 ftlb.)
Right engine mount
Left engine mount
Screw, M10 x 45 → Tightening torque: 65 Nm (48 ftlb.)
Bracket for engine mount, left
Dowel sleeve, 14m 6x 15

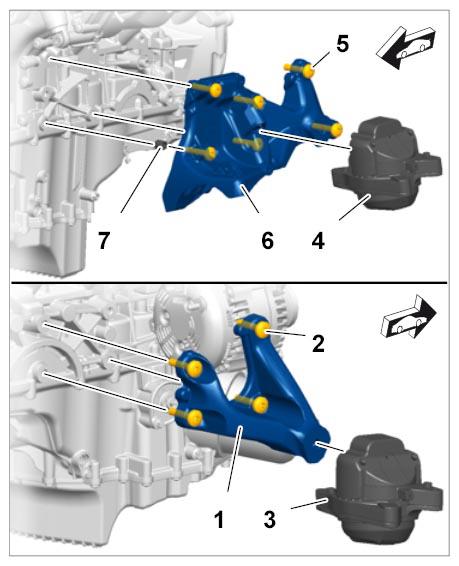

Fig 1: Identifying Engine Mounting Bracket And Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Not shown - Screw (M12 x 1.5) securing engine mount to bracket/replace → Initial tightening: 90 Nm (67 ftlb.) → Final tightening: +90°
