Removing Engine Mount

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Information

The pictures shown in this document may differ from the original .

Remove engine mount -1- .
1. 1.1. Lift and secure the cover -2- .
2. 1.2. Unscrew screw -3- and remove engine mount -1- .

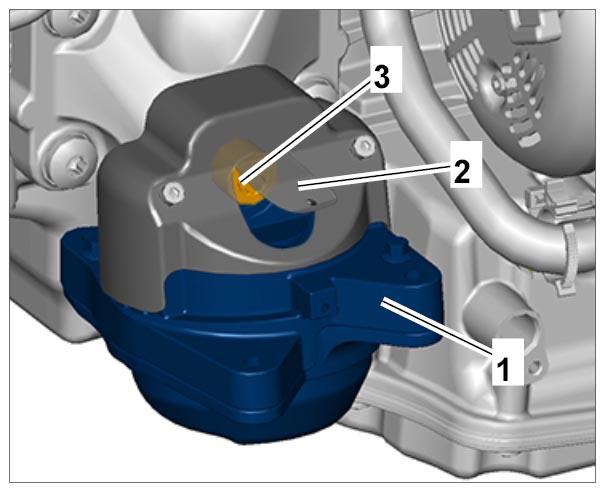

  Fig 1: Identifying Engine Mount
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
