WM 1001Z2 Assembling Engine (Cayenne S, Cayenne Turbo, Cayenne GTS, Cayenne Turbo S): Tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Designation |
Type |
Number |
Description |
|

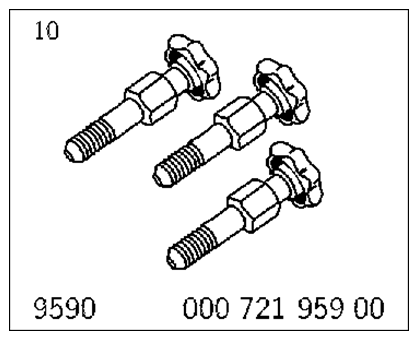

| mounting elements |
Special tool |
9590 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

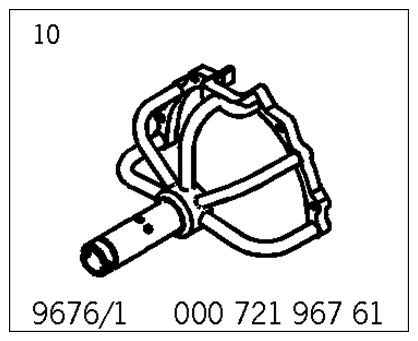

| engine support |
Special tool |
9676/1 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| holding bridge |
Special tool |
9677/1 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| brace |
Special tool |
9679/1 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| funnel |
Special tool |
9784/1 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

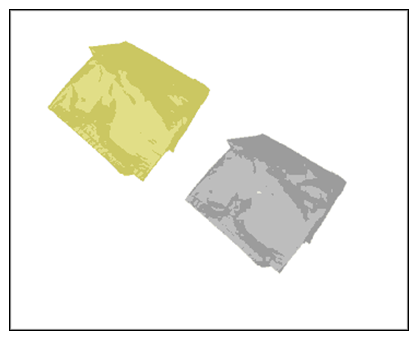

| cover for dust protection when fitting the engine |
Special tool |
NR.165 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
