Group 26, Exhaust System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Exhaust manifold
  2. Exhaust manifold seal
  3. Exhaust turbocharger seal
  4. Screw, M8 x 75 → Initial tightening: 23 Nm (17 ftlb.) → Final tightening: 30 Nm (22 ftlb.)
  5. Hexagon nut, M8; (check nuts by clicking once); observe tightening sequence → Tightening torque: 33 Nm (24 ftlb.) (check nuts by clicking once)
  1. Marking on seal visible from outside

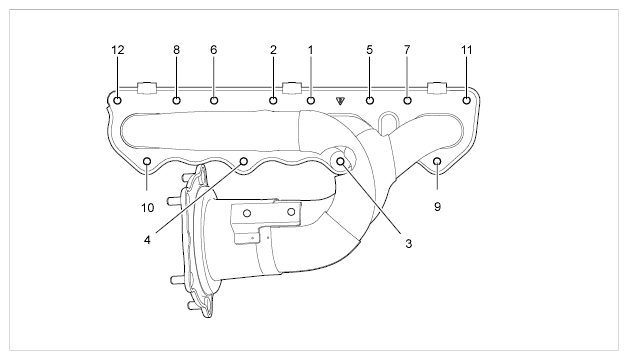

    2. Fig 1: Exhaust Manifold Screws Tightening Sequence - Naturally Aspirated Engine
    G09931771Courtesy of PORSCHE CARS NORTH AMERICA, INC.

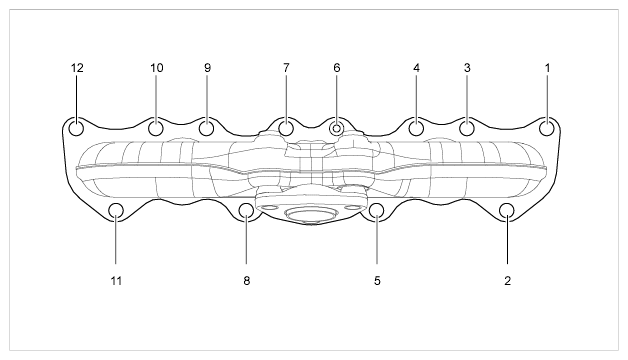

    Fig 2: Exhaust Manifold Screws Tightening Sequence - Turbo Engine
    G09931772Courtesy of PORSCHE CARS NORTH AMERICA, INC.

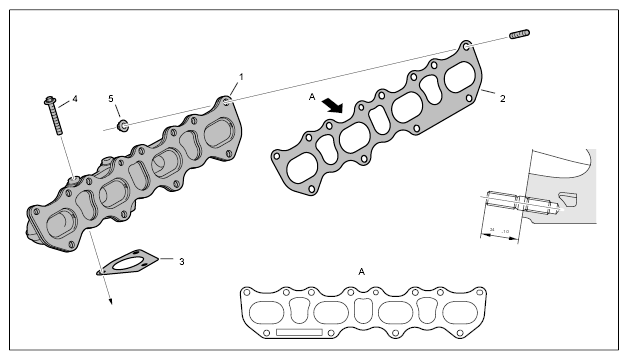

    Fig 3: Locating Exhaust Manifold Seal - Turbo Engine, Cylinders 1 To 4
    G09931773Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Exhaust manifold
  2. Hexagon nut, M8; (check nuts by clicking once); observe tightening sequence → Tightening torque: 33 Nm (24 ftlb.) (check nuts by clicking once)
  3. Screw, M8 x 75 → Initial tightening: 23 Nm (17 ftlb.) → Final tightening: 30 Nm (22 ftlb.)
  4. Exhaust turbocharger seal
  5. Exhaust manifold seal
  1. Marking on seal visible from outside
    2. Fig 4: Locating Exhaust Manifold Seal - Turbo Engine, Cylinders 5 To 8
    G09931774Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Exhaust manifold
  2. Exhaust manifold seal
  3. Hexagon nut, M8; (check nuts by clicking once); observe correct tightening sequence → Tightening torque: 33 Nm (24 ftlb.) (check nuts by clicking once)
  4. Oxygen sensor → Tightening torque: 45 Nm (33 ftlb.)+/-5 Nm (+/-3.5 ftlb.)
  1. Marking on seal visible from outside

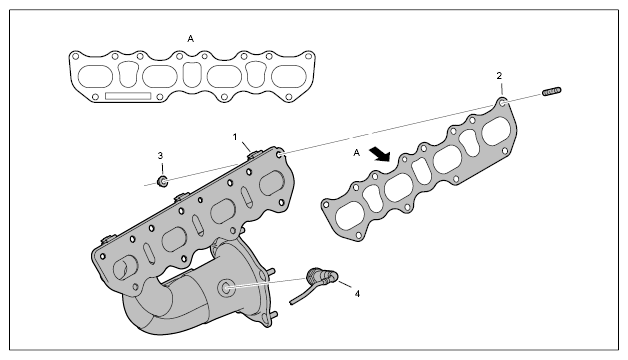

Fig 5: Locating Exhaust Manifold Seal - Naturally Aspirated Engine, Cylinders 1 To 4
G09931775Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Exhaust manifold
  2. Seal
  3. Hexagon nut, M8; (check nuts by clicking once); observe correct tightening sequence → Tightening torque: 33 Nm (24 ftlb.) (check nuts by clicking once)
  4. Oxygen sensor → Tightening torque: 45 Nm (33 ftlb.)+/-5 Nm (+/-3.5 ftlb.)
  1. Marking on seal visible from outside

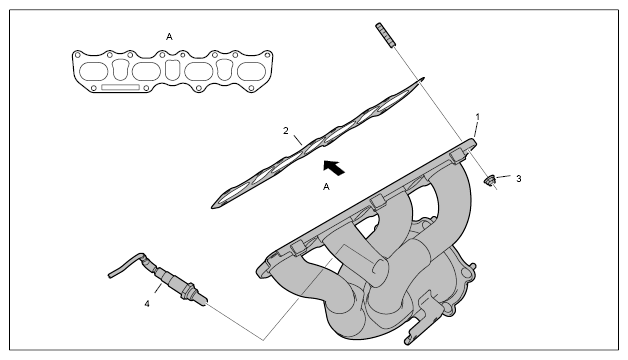

    2. Fig 6: Locating Exhaust Manifold Seal - Naturally Aspirated Engine, Cylinders 5 To 8
    G09931776Courtesy of PORSCHE CARS NORTH AMERICA, INC.
