Group 24, Fuel System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fuel distributor pipe (fuel gallery)
  2. Stopper; in 3 turns (tighten, loosen, tighten) → Tightening torque: 25 Nm (19 ftlb.)
  3. High-pressure sensor → Tightening torque: 20 Nm (15 ftlb.)

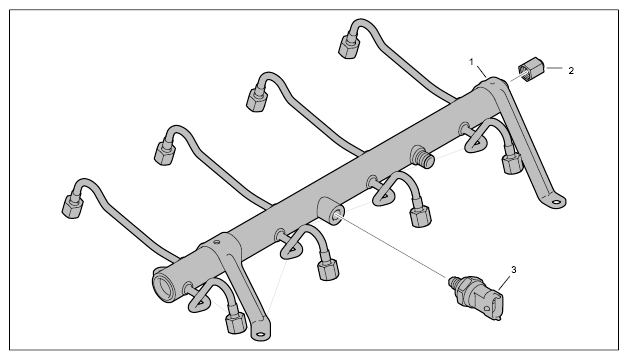

    4. Fig 1: Identifying Fuel Distributor Pipe
    G09931762Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Holder
  2. Screw, M8 x 30 → Tightening torque: 23 Nm (17 ftlb.)
  3. Injector (high-pressure fuel injector)

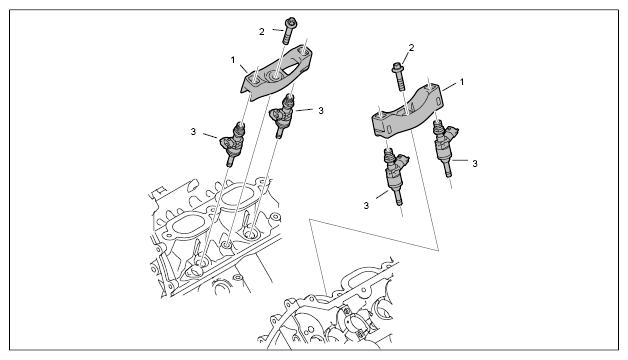

    4. Fig 2: Identifying Injectors (High-Pressure Fuel Injectors)
    G09931763Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
  2. Screw, M6 x 25 → Tightening torque: 10 Nm (7.5 ftlb.)
  3. High-pressure line connection
  4. Connection to injector (high-pressure fuel injector); in 3 turns (tighten, loosen, tighten) → Tightening torque: 25 Nm (19 ftlb.)

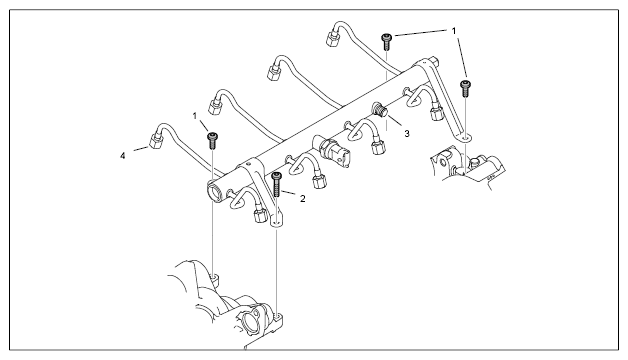

    5. Fig 3: Identifying Fuel Distributor Pipe Mount
    G09931764Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. High-pressure pump
  2. High-pressure line; (3 turns: tighten, loosen, tighten) → Tightening torque: 25 Nm (19 ftlb.)
  3. Low-pressure line; (3 turns: tighten, loosen, tighten) → Tightening torque: 25 Nm (19 ftlb.)
  4. Screw socket, M8 → Tightening torque: 23 Nm (17 ftlb.)
  5. Screw socket, M6 → Tightening torque: 10 Nm (7.5 ftlb.)
  6. Protective plate
  7. Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ftlb.)
  8. Screw, M6 x 25 → Tightening torque: 10 Nm (7.5 ftlb.)
  1. Required line distance (5 to 8 mm) between high-pressure line and low-pressure line

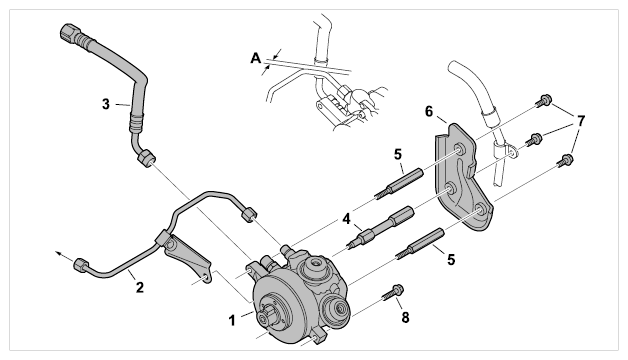

    2. Fig 4: Identifying High-Pressure Pump On Turbo Engine, 6-Piston Pump
    G09931765Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. High-pressure pump
  2. High-pressure line; (3 turns: tighten, loosen, tighten) → Tightening torque: 25 Nm (19 ftlb.)
  3. Low-pressure line; (3 turns: tighten, loosen, tighten) → Tightening torque: 25 Nm (19 ftlb.)
  4. Screw socket, M8 → Tightening torque: 23 Nm (17 ftlb.)
  5. Screw socket, M6 → Tightening torque: 10 Nm (7.5 ftlb.)
  6. Protective plate
  7. Screw, M6 x 12 → Tightening torque: 10 Nm (7.5 ftlb.)
  8. Screw, M6 x 25 → Tightening torque: 10 Nm (7.5 ftlb.)
  1. Required line distance (5 to 8 mm) between high-pressure line and low-pressure line

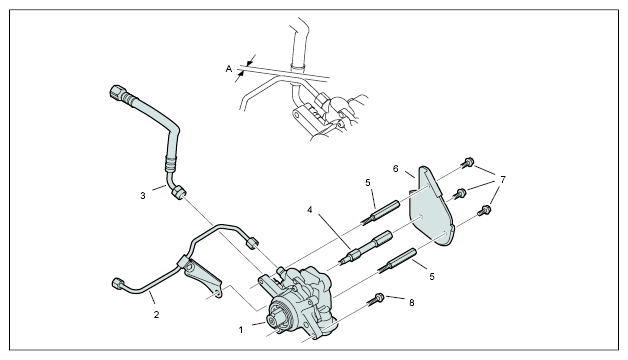

    2. Fig 5: Identifying High-Pressure Pump On Naturally Aspirated Engine, 3-Piston Pump
    G09931766Courtesy of PORSCHE CARS NORTH AMERICA, INC.

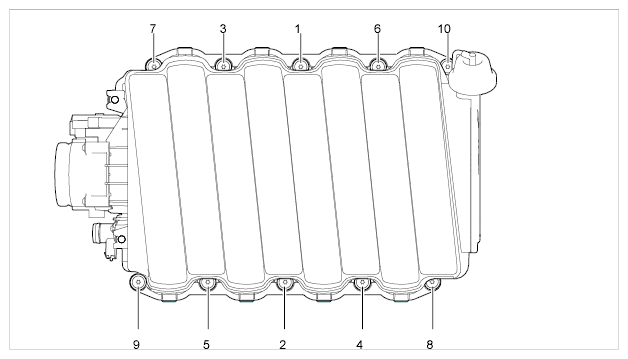

Fig 6: Intake Module Screws Tightening Sequence
G09931767Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Intake module
  2. Decoupling module (fastening part); observe tightening sequence → Tightening torque: 15 Nm (11 ftlb.)
  3. Screw, 5 x 16 → Tightening torque: 4 Nm (3 ftlb.)  and → Tightening torque: 4 Nm (3 ftlb.)
  4. Pressure sensor
  5. Intake module seal; check that seal is aligned and fitted correctly!
  6. Heat socket
  7. Screw, 6 x 50 → Tightening torque: 7 Nm (5 ftlb.)
  8. Electronic accelerator
  9. Seal
  10. Ball socket

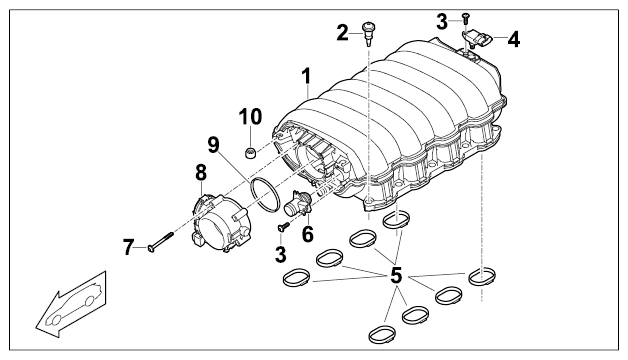

Fig 7: Identifying Intake Module Components - Naturally Aspirated Engine
G09931768Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pipe
  2. Connecting piece
  3. Variable intake manifold adjuster/adjusting unit
  4. Lip seal
  5. Connecting element
  6. Vacuum unit with cover (actuator)
  7. Screw, M5 x 16 → Tightening torque: 4 Nm (3 ftlb.)
  8. Driver
  9. Connecting rod
  10. Vacuum line

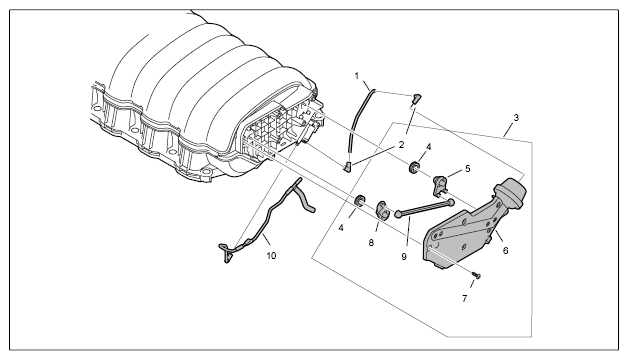

Fig 8: Identifying Variable Intake Manifold Components - Naturally Aspirated Engine
G09931769Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Intake module
  2. Decoupling module (fastening part); observe tightening sequence → Tightening torque: 15 Nm (11 ftlb.)
  3. Screw, 5 x 16 → Tightening torque: 4 Nm (3 ftlb.)  and → Tightening torque: 4 Nm (3 ftlb.)
  4. Pressure sensor
  5. Intake module seal; check that seal is aligned and fitted correctly!
  6. Heat socket
  7. Screw, 6 x 50 → Tightening torque: 7 Nm (5 ftlb.)
  8. Electronic accelerator
  9. Seal
  10. Ball socket

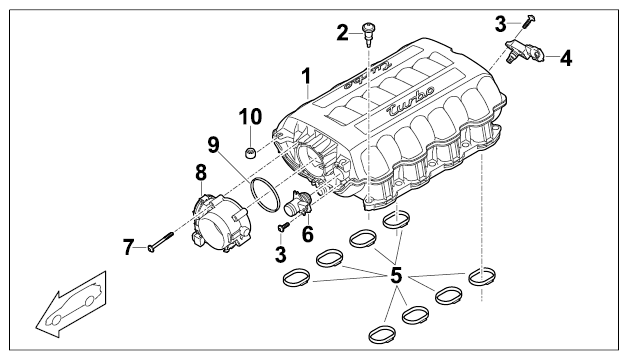

    11. Fig 9: Identifying Intake Air Module Components - Turbo Engine
    G09931770Courtesy of PORSCHE CARS NORTH AMERICA, INC.
