Group 19, Cooling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

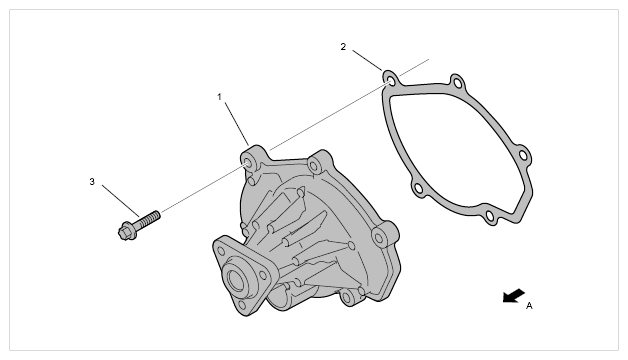

  1. Coolant pump
  2. Seal; fitted in pump
  3. Screw, M6 x 25 => For details of tightening sequence, see below → Tightening torque: 12 Nm (9 ftlb.)
  1. Direction of travel
    2. Fig 1: Identifying Coolant Pump Seal
    G09931744Courtesy of PORSCHE CARS NORTH AMERICA, INC.

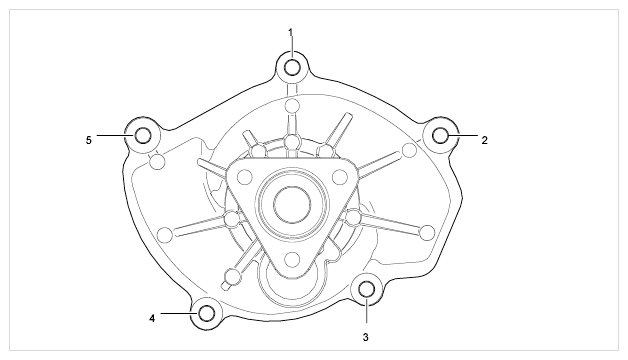

Fig 2: Coolant Pump Screw Tightening Sequence
G09931745Courtesy of PORSCHE CARS NORTH AMERICA, INC.

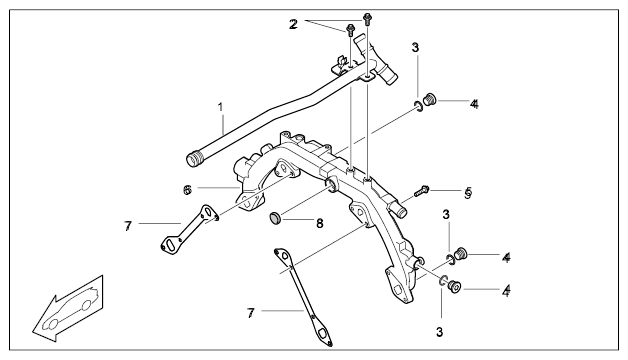

  1. Heating coolant pipe
  2. Screw, M6 → Tightening torque: 12 Nm (9 ftlb.)
  3. Sealing ring
  4. Screw plug, M16 x 1.5 → Tightening torque: 30 Nm (22 ftlb.)
  5. Screw, M6 → Tightening torque: 12 Nm (9 ftlb.)
  6. Coolant guide tube (collection pipe)
  7. Sheetmetal seal
  8. Stopper
    9. Fig 3: Identifying Coolant Pipe, Screw, Sealing Ring And Guide
    G09931746Courtesy of PORSCHE CARS NORTH AMERICA, INC.

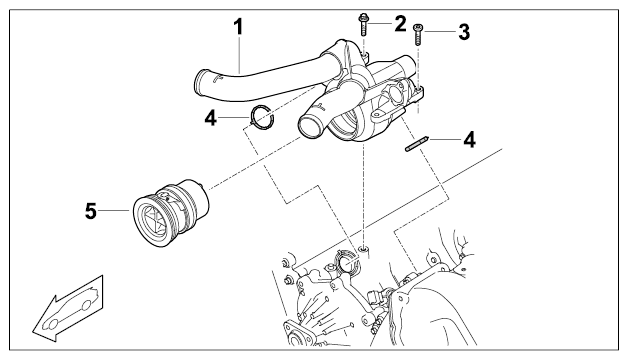

  1. Thermostat housing
  2. Screw, M6 x 25 → Tightening torque: 12 Nm (9 ftlb.)
  3. Screw, M6 x 25; screwed to fuel high-pressure distributor pipe => see relevant section
  4. Seal for thermostat housing; replace
  5. Thermostat insert; including electric heating element
    6. Fig 4: Identifying Thermostat Housing And Coolant Regulator
    G09931747Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fig 5: Thermostat Housing Screws Tightening Sequence
G09931748Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Connection piece on generator
  2. Screw for connection piece → Tightening torque: 10 Nm (7.5 ftlb.)
  3. Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ftlb.)
  4. Coolant return line
  5. Coolant return hose assembly
  6. Holder
  7. Screw, M6 Aluminum screw  ; always use new aluminum screws → Initial tightening: 4 Nm (3 ftlb.)  and → Final tightening: 90°
  8. Clip

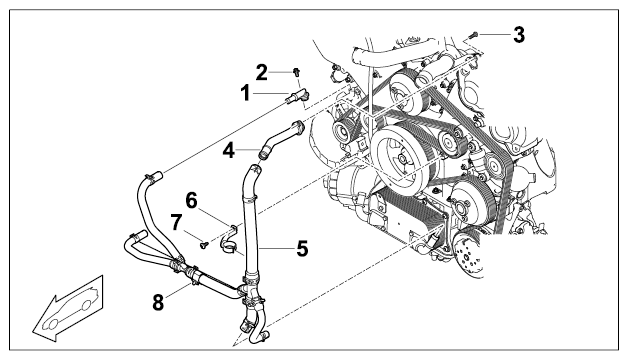

    9. Fig 6: Identifying Coolant Return Line - Turbo Engine
    G09931749Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Connection piece on generator
  2. Screw for connection piece → Tightening torque: 10 Nm (7.5 ftlb.)
  3. Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ftlb.)
  4. Coolant return line
  5. Coolant return hose assembly
  6. Holder
  7. Screw, M6 Aluminum screw  ; always use new aluminum screws → Initial tightening: 4 Nm (3 ftlb.)  and → Final tightening: 90°
  8. Clip

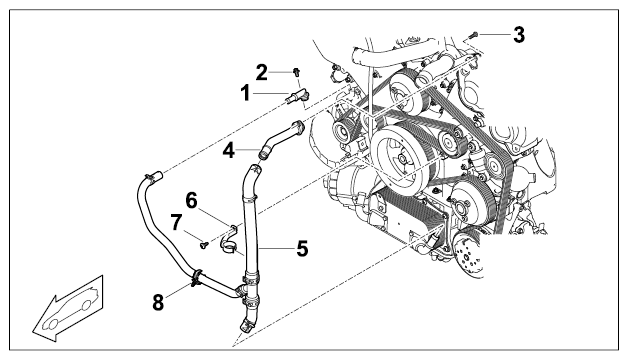

    9. Fig 7: Identifying Coolant Return Line - Naturally Aspirated Engine
    G09931750Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Screw, M6; coolant line to collection pipe → Tightening torque: 10 Nm (7.5 ftlb.)
  2. Coolant pipe
  3. Screw for connection piece → Tightening torque: 10 Nm (7.5 ftlb.)
  4. Connection piece on generator
  5. Coolant supply hose for oil/coolant heat exchanger
  6. Coolant supply hose to generator
    7. Fig 8: Identifying Coolant Supply Line - Turbo Engine
    G09931751Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Screw, M6; coolant line to collection pipe → Tightening torque: 10 Nm (7.5 ftlb.)
  2. Coolant pipe
  3. Screw for connection piece → Tightening torque: 10 Nm (7.5 ftlb.)
  4. Connection piece on generator
  5. Coolant supply hose for oil/coolant heat exchanger
  6. Coolant supply hose to generator

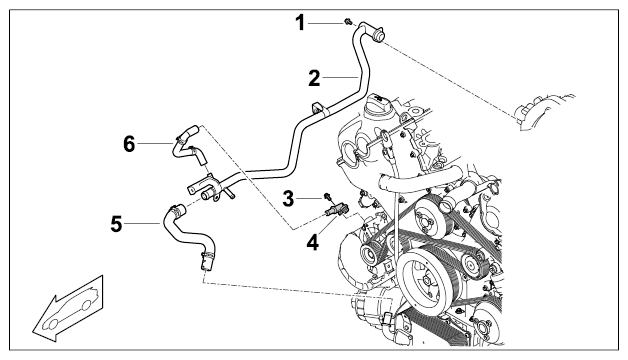

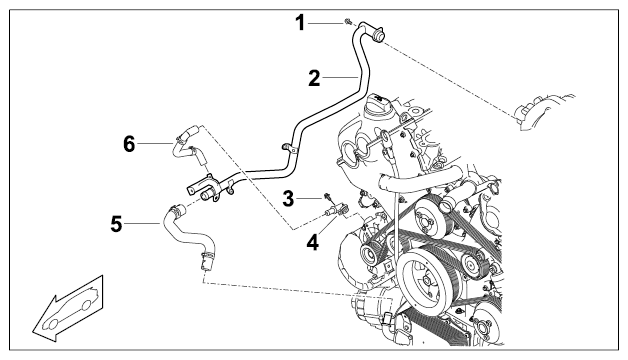

    7. Fig 9: Identifying Coolant Supply Line - Naturally Aspirated Engine
    G09931752Courtesy of PORSCHE CARS NORTH AMERICA, INC.

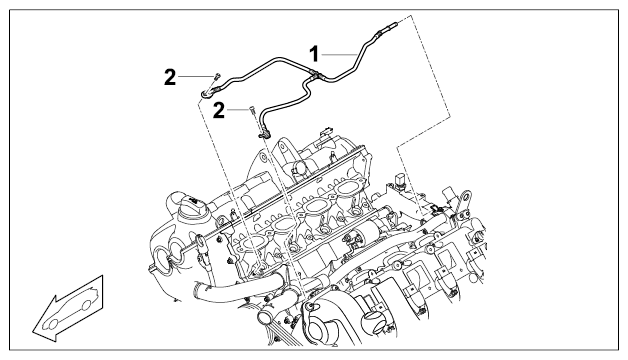

  1. Vent line
  2. Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
    3. Fig 10: Identifying Ventilation Line And Screws
    G09931753Courtesy of PORSCHE CARS NORTH AMERICA, INC.
