Group 17, Lubrication

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

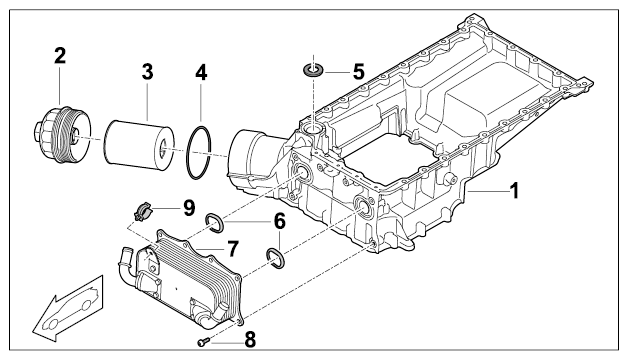

  1. Oil guide housing
  2. Oil-filter cover → Tightening torque: 25 Nm (19 ftlb.)
  3. Oil filter
  4. Oil-filter sealing ring
  5. Oil duct adapter (cannot be replaced)
  6. Heat exchanger seal
  7. Oil-water heat exchanger
  8. Screw, M6 x 20; self-tapping screws ex-works; metric screws can also be used → Tightening torque: 10 Nm (7.5 ftlb.)
    9. Fig 1: Identifying Oil/Water Heat Exchanger Components
    G09931732Courtesy of PORSCHE CARS NORTH AMERICA, INC.

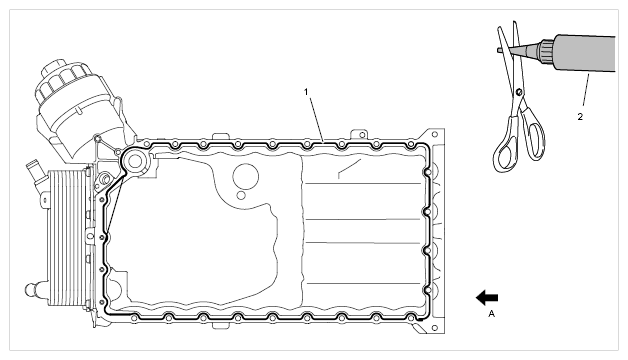

  1. Sealant application (geometry, 1-mm bead of sealant)
  2. Sealant application - Doboseal 224N (999.915.573.43, status 09/08)
  1. Direction of travel
    2. Fig 2: Applying Sealant To Oil Guide Housing
    G09931733Courtesy of PORSCHE CARS NORTH AMERICA, INC.

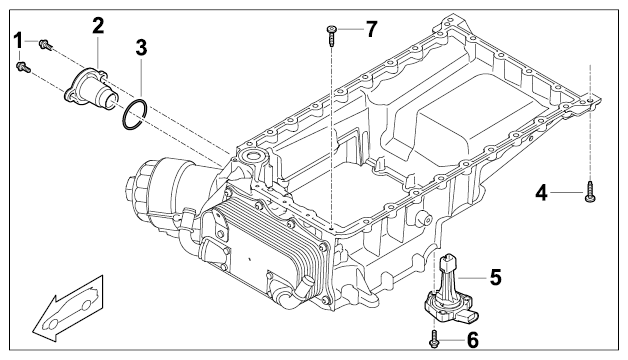

  1. Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ftlb.)
  2. Sealing flange
  3. Sealing ring
  4. Oil guide housing to lower part of crankcase Aluminum screw  ; always use new aluminum screws → Initial tightening: 4 Nm (3 ftlb.)  and → Final tightening: 90°
  5. Oil level sensor
  6. Oil level sensor to oil guide housing (steel screw) → Tightening torque: 10 Nm (7.5 ftlb.)  ;
    7. Fig 3: Identifying Oil Guide Housing With Accessories
    G09931734Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Timing-case cover to oil guide housing Aluminum screw  ; always use new aluminum screws → Initial tightening: 4 Nm (3 ftlb.)  and → Final tightening: 90°

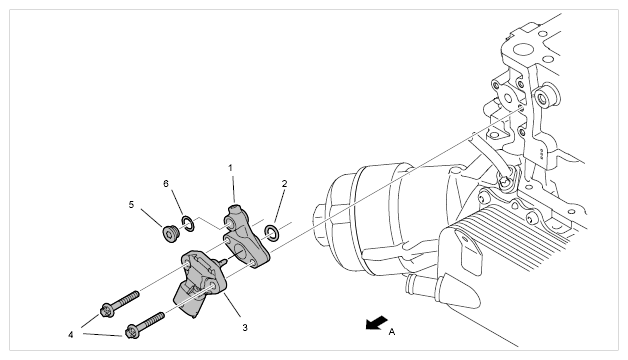

  1. Oil-pressure sensor adapter
  2. Sealing ring
  3. Oil-pressure sender with temperature sensor
  4. Screw, M6 x 40 → Tightening torque: 10 Nm (7.5 ftlb.)
  5. Stopper → Tightening torque: 15 Nm (11 ftlb.)
  6. Sealing ring
  1. Direction of travel
    2. Fig 4: Identifying Oil Pressure Sensor Adapter And Sealing Ring
    G09931735Courtesy of PORSCHE CARS NORTH AMERICA, INC.

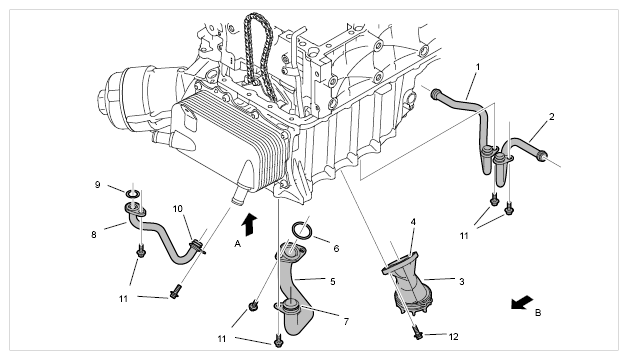

  1. Oil extraction line for turbocharger, cylinders 1 to 4
  2. Oil extraction line for turbocharger, cylinders 5 to 8
  3. Intake manifold on oil pump
  4. O-ring
  5. Oil pressure pipe
  6. O-ring
  7. O-ring, 22 x 3
  8. Oil control line
  9. O-ring
  10. O-ring
  11. Screw, M6 x 16; oil pressure pipe to oil pump and oil guide housing → Tightening torque: 12 Nm (9 ftlb.)  ; oil regulating line to oil pump and oil guide housing → Tightening torque: 12 Nm (9 ftlb.)  ; turbocharger extraction line to oil pump → Tightening torque: 12 Nm (9 ftlb.)
    12. Fig 5: Identifying Oil Lines, O-Ring And Oil Pressure Pipe - Turbo Engine
    G09931736Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Screw, M6 x 20 → Tightening torque: 12 Nm (9 ftlb.)
  1. For arrangement of oil lines.
  2. Direction of travel

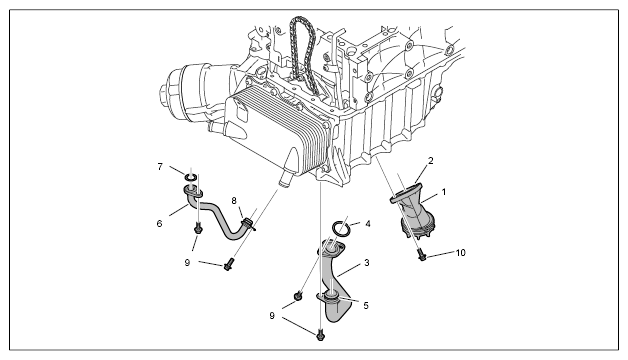

  1. Oil pump intake manifold
  2. O-ring
  3. Oil pressure pipe
  4. O-ring
  5. O-ring
  6. Oil regulating line
  7. O-ring
  8. O-ring
  9. Screw, M6 x 16; oil pressure pipe to oil pump and oil guide housing → Tightening torque: 12 Nm (9 ftlb.)  ; oil regulating line to oil pump and oil guide housing → Tightening torque: 12 Nm (9 ftlb.)
  10. Screw, M6 x 20 → Tightening torque: 12 Nm (9 ftlb.)
Fig 6: Identifying Oil Lines, O-Ring And Oil Pressure Pipe - Naturally Aspirated Engine
G09931737Courtesy of PORSCHE CARS NORTH AMERICA, INC.

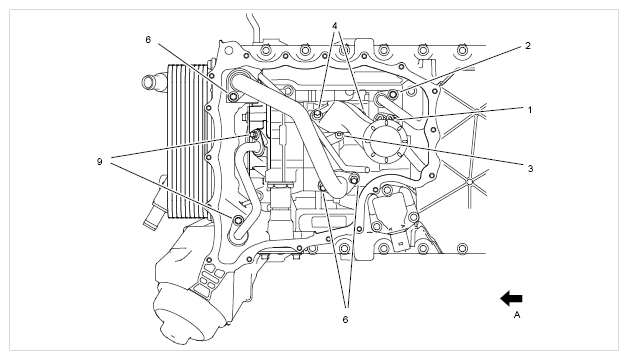

  1. Mount for oil extraction line for turbocharger, cylinders 1 to 4
  2. Mount for oil extraction line for turbocharger, cylinders 5 to 8
  3. Mount for oil separator vent line, cylinders 5 to 8
  4. Mount for oil pump intake manifold
  1. 6  - Mount for oil pressure pipe
  2. 9  - Mount for oil regulating line
  1. Direction of travel
    2. Fig 7: Identifying Oil Lines, Turbo Engine Intake Manifold
    G09931738Courtesy of PORSCHE CARS NORTH AMERICA, INC.

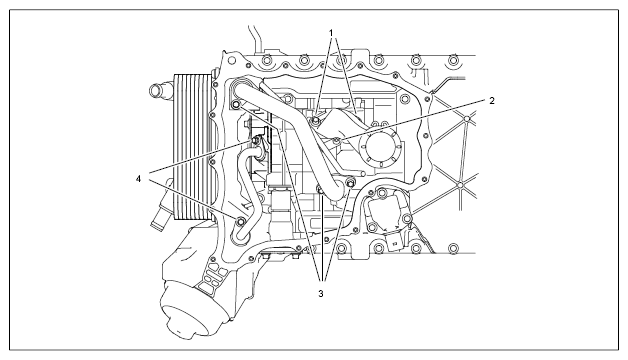

  1. Mount for oil pump intake manifold
  2. Mount for oil separator vent line, cylinders 5 to 8
  3. Mount for oil pressure pipe
  4. Mount for oil regulating line
    5. Fig 8: Identifying Oil Lines, Naturally Aspirated Engine Intake Manifold
    G09931739Courtesy of PORSCHE CARS NORTH AMERICA, INC.

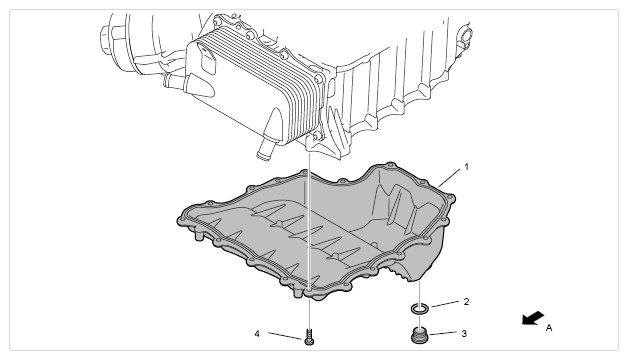

  1. Oil pan with reusable seal inserted
  2. Sealing ring
  3. Oil drain plug, M18 x 1.5 → Tightening torque: 50 Nm (37 ftlb.)
  4. Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ftlb.)
  1. Direction of travel
    2. Fig 9: Identifying Oil Pan Screws
    G09931740Courtesy of PORSCHE CARS NORTH AMERICA, INC.

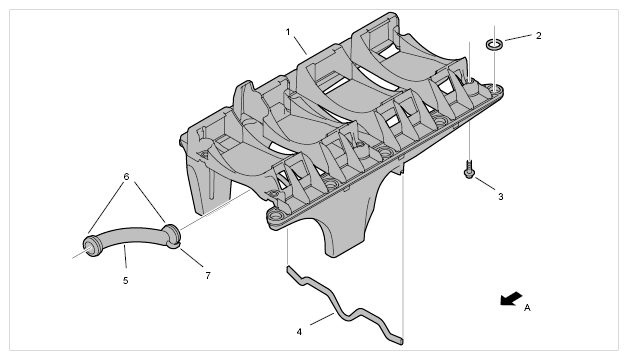

  1. Oil guide (oil plate)
  2. Oil return seal
  3. Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ftlb.)
  4. Bulkhead seal
  5. Joining socket
  6. O-ring
  7. Assembly depth until locking lug engages
  1. Direction of travel
    2. Fig 10: Identifying Oil Guide And Seal (Oil Plate)
    G09931741Courtesy of PORSCHE CARS NORTH AMERICA, INC.

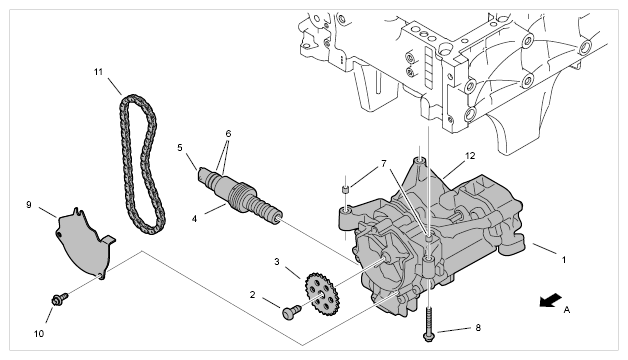

  1. Oil pump with extraction stage
  2. Screw, M8 x 22; replace; 1st turn → Initial tightening: 20 Nm (15 ftlb.)  ; final tightening (torque angle) → Torque angle: 90°
  3. Oil pump sprocket
  4. Cap screw, M36 x 1.5 x 12 → Tightening torque: 40 Nm (30 ftlb.)
  5. Solenoid valve
  6. O-ring (grease before fitting)
  7. Dowel sleeve
  8. Screw, M6 x 45 → Tightening torque: 13 Nm (9.5 ftlb.)
  9. Sprocket cover
  10. Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
  11. Drive chain
  12. Connection for intake manifold joining socket
  1. Direction of travel
    2. Fig 11: Identifying Oil Pump, O-Ring And Screws
    G09931742Courtesy of PORSCHE CARS NORTH AMERICA, INC.

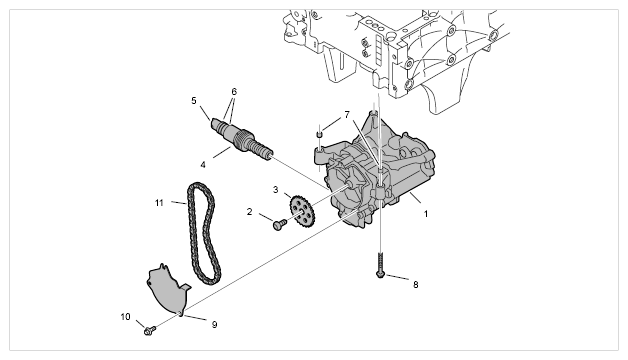

  1. Oil pump
  2. Screw, M8 x 22; replace; 1st turn → Initial tightening: 20 Nm (15 ftlb.)  ; final tightening (torque angle) → Torque angle: 90°
  3. Oil pump sprocket
  4. Cap screw, M36 x 1.5 x 12 → Tightening torque: 40 Nm (30 ftlb.)
  5. Solenoid valve
  6. O-ring (grease before fitting)
  7. Dowel sleeve
  8. Screw, M6 x 45 → Tightening torque: 13 Nm (9.5 ftlb.)
  9. Sprocket cover
  10. Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
  11. Drive chain
    12. Fig 12: Identifying Oil Pump On Naturally Aspirated Engine
    G09931743Courtesy of PORSCHE CARS NORTH AMERICA, INC.
