Group 10, Crankcase

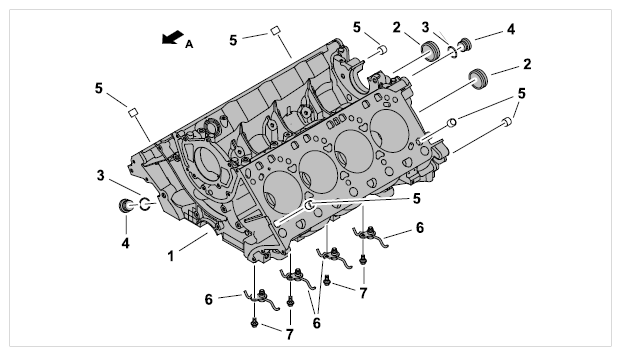

1. Upper part of crankcase
2. Lid
3. Sealing ring
4. Screw plug for upper part of crankcase → Tightening torque: 30 Nm (22 ftlb.)  and → Torque angle: 60°
5. Dowel sleeve
6. Oil spray jet
7. Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)

1. Direction of travel

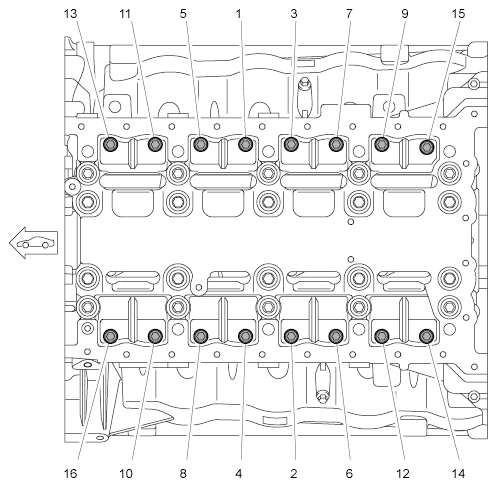

Fig 1: Crankcase Screw Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Lower part of crankcase
2. Straight pin, 6 x 18
3. Sealing ring
4. Sealant application - Doboseal 224N (999.915.573.43, status 09/08)
5. Thrust-bearing screw M11; tighten screws within 5 minutes; observe tightening sequence. → Initial tightening: 30 Nm (22 ftlb.) → Torque angle: 90°
6. Thrust-bearing screw M10; tighten screws within 5 minutes; observe tightening sequence. → Initial tightening: 22 Nm (16 ftlb.) → Torque angle: 60°
7. Aluminum screw  , M8 x 70; (cross bolt connection); always use new aluminum screws; → Initial tightening: 10 Nm (7.5 ftlb.)  and → Final tightening: 90°
8. Screw, M8 x 35 → Tightening torque: 23 Nm (17 ftlb.)
9. Screw, M8 x 50 → Tightening torque: 23 Nm (17 ftlb.)
10. Dowel sleeve

1. Direction of travel

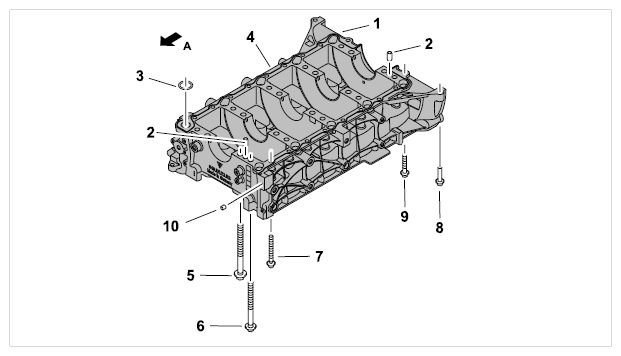

Fig 2: Crankcase Lower Part Screws Tightening Sequence (V8 2WD)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Wipe off sealant residue after fitting

1. Direction of travel

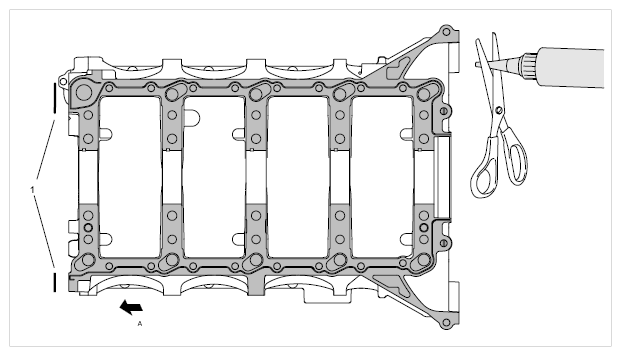

Fig 3: Applying Sealant On Engine Block Gasket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

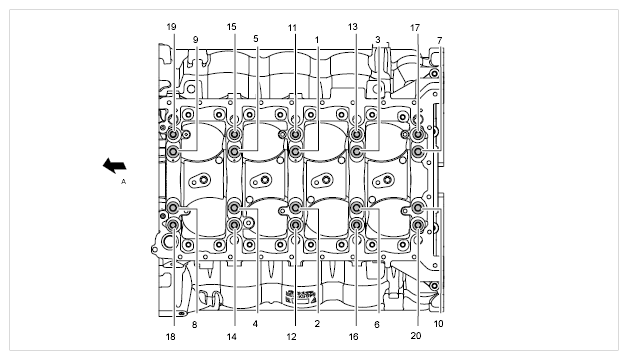

1 to 20  - Tightening sequence for M11 and M10 screws => Observe different torques!

1. Direction of travel
Fig 4: Thrust-Bearing Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 5: Crankcase Lower Part To Upper Part Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Bracket for auxiliary units/engine mounting
2. Screw, M10 x 45 → Tightening torque: 65 Nm (48 ftlb.)
3. Hydraulic mount, left
4. Engine carrier
5. Screw, M10 x 65 → Tightening torque: 60 Nm (44 ftlb.)
6. Dowel sleeve
7. Nut, M12 x 1.5 → Tightening torque: 75 Nm (56 ftlb.)

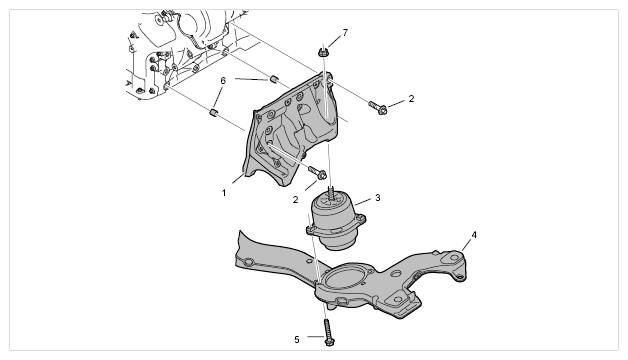

Fig 6: Identifying Auxiliary Units And Engine Mounting Right Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Engine carrier, cylinders 1 to 4
2. Screw, M10 x 45 → Tightening torque: 65 Nm (48 ftlb.)
3. Hydraulic mount, right
4. Engine carrier
5. Screw, M10 x 65 → Tightening torque: 60 Nm (44 ftlb.)
6. Nut, M12 x 1.5 → Tightening torque: 75 Nm (56 ftlb.)
7. Bores for screws, M10 x 45

1. Installation view of engine carrier on crankcase

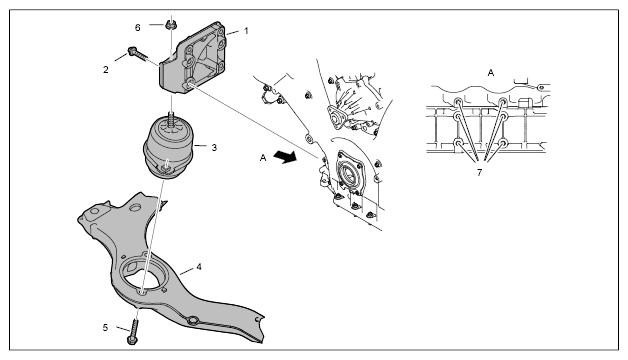

Fig 7: Identifying Auxiliary Units And Engine Mounting Left Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

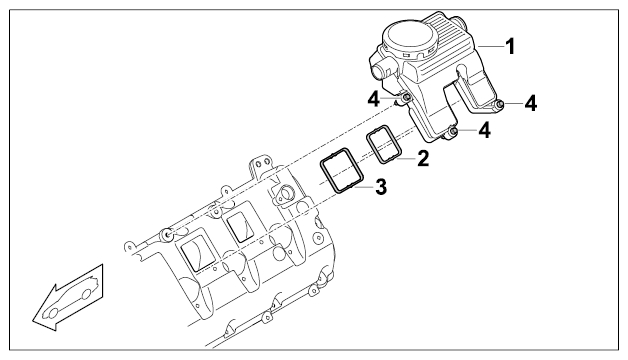

1. Engine ventilation/oil mist separator
2. Molded seal
3. Molded seal
4. Screw elements, M6 → Tightening torque: 10 Nm (7.5 ftlb.)
Fig 8: Identifying Oil Mist Separator Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Engine ventilation line
2. Line for oil mist separator to intake-air distributor
3. Tank ventilation
4. Aluminum holder
5. Aluminum screw (holder); see FigureTiming-case cover

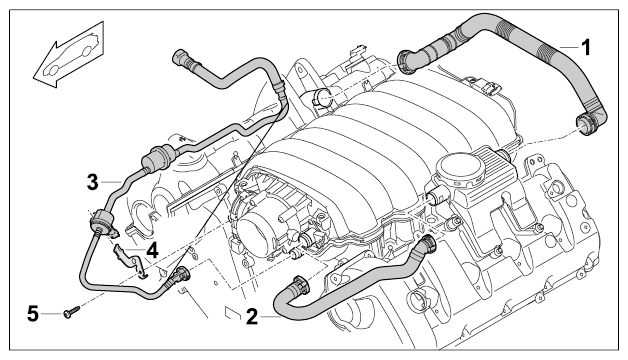

Fig 9: Identifying Engine Ventilation Line, Tank Ventilation And Aluminum Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Engine ventilation line
2. Full-throttle ventilation check valve with lines secured; one-way coupling for turbocharger intake manifold
3. Tank ventilation
4. Aluminum holder
5. Aluminum screw (holder); see FigureTiming-case cover

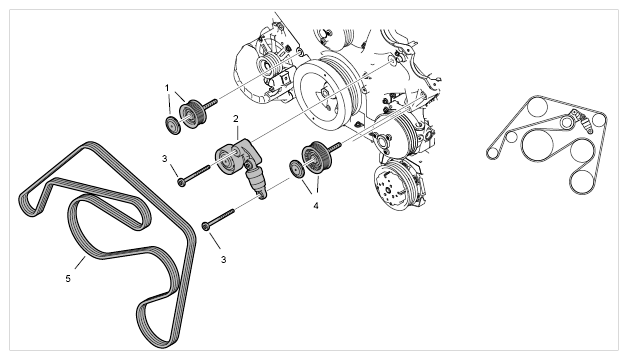

6. Belt tensioner
7. Holder
8. Fastening screw; see FigureBelt drive

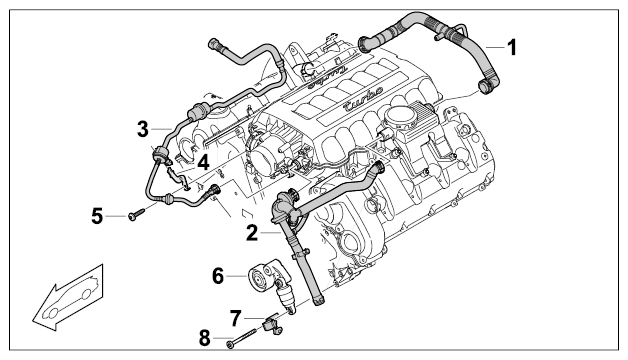

Fig 10: Identifying Turbo Engines Ventilation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Ventilation pipe with sealing ring (holder to timing-case cover) → Initial tightening: 4 Nm (3 ftlb.)  and → Final tightening: 90°
2. Screw, M6 x 12 → Tightening torque: 10 Nm (7.5 ftlb.)

1. Installation view of ventilation pipe

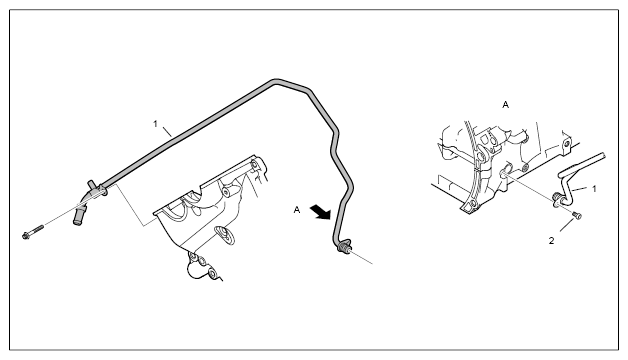

Fig 11: Identifying Positive Crankcase Ventilation Components - Turbo Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Design cover for cylinder bank 1 to 4
2. Design cover for cylinder bank 5 to 8
3. Screw; design cover to bar ignition module → Tightening torque: 4.4 Nm (3.5 ftlb.)
4. Mounting points (rubber ball elements)

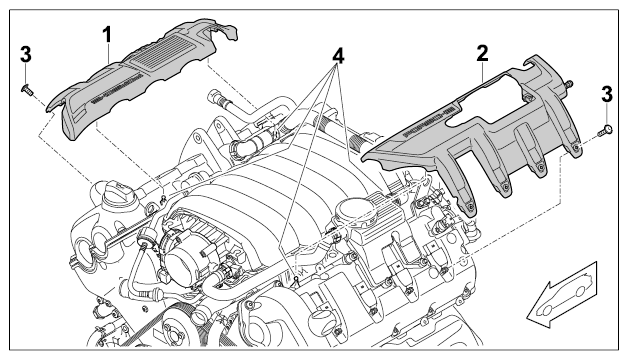

Fig 12: Identifying Engine Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
