Assembly Overview - Air-Conditioning Compressor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Air-conditioning compressor
  2. Screw → Tightening torque: 20 Nm (15 ftlb.)
  3. Dowel sleeve
  4. Refrigerant line (low-pressure)
  5. Refrigerant line (high-pressure)
  6. Screw → Tightening torque: 23 Nm (17 ftlb.)
  7. Sealing ring/replace
  8. Poly-V-belt

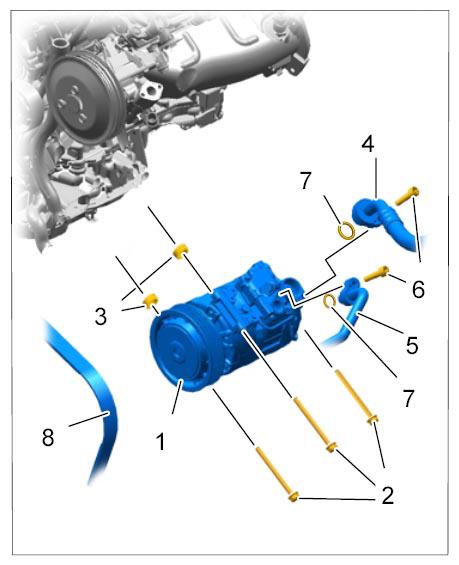

    9. Fig 1: Overview Of Air-Conditioning Compressor
    G09931682Courtesy of PORSCHE CARS NORTH AMERICA, INC.
