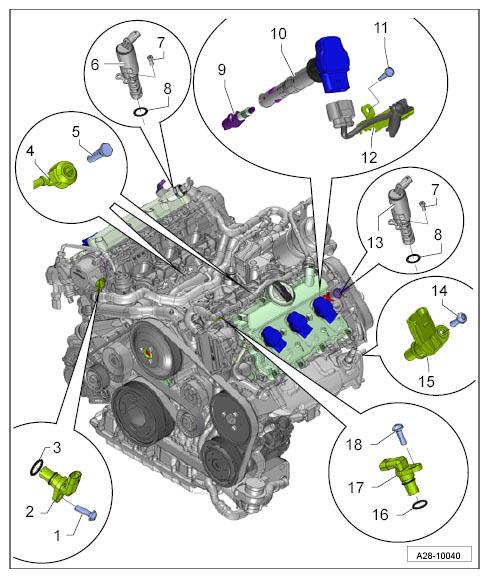

Assembly Overview - Ignition System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Screw → Tightening torque: 9 Nm (6.5 ftlb.)
- Hall sender
- O-ring/replace
- Knock sensor
- Screw → Tightening torque: 20 Nm (15 ftlb.)
- Camshaft control valve 1
- Screw → Tightening torque: 5 Nm (3.5 ftlb.)
- O-ring/replace
- Spark plug → Tightening torque: 30 Nm (22 ftlb.)
- Ignition coil
- Screw → Tightening torque: 5 Nm (3.5 ftlb.)
- Electric wire harness
- Camshaft control valve 2
- Screw → Tightening torque: 9 Nm (6.5 ftlb.)
- Engine speed sender
- O-ring/replace
- Hall sender
- Screw → Tightening torque: 9 Nm (6.5 ftlb.)
