Assembly Overview - Starter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Starter
Adapter for starter
Screw → Tightening torque: 10 Nm (7.5 ftlb.)
Dowel sleeve

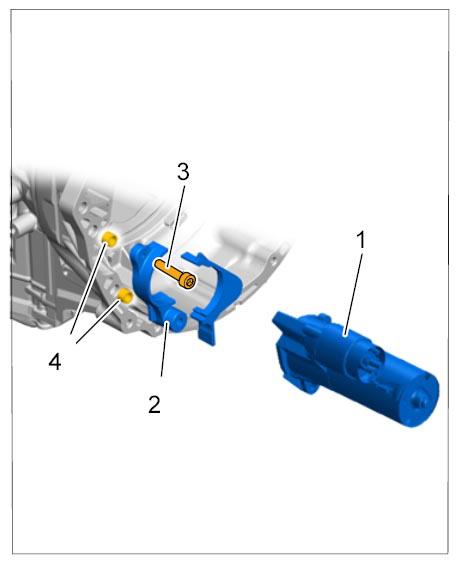

Fig 1: Overview Of Starter Sleeves

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Not shown - Screw, M10 x 95 → Initial tightening: 15 Nm (11 ftlb.) → Final tightening: +105°+/-30°

Not shown - Screw, M12 x 75 → Initial tightening: 30 Nm (22 ftlb.) → Final tightening: +105°+/-30°
