Individual Components Of The Left Holder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  2. Holder
  3. Screw → Tightening torque: 23 Nm (17 ftlb.)

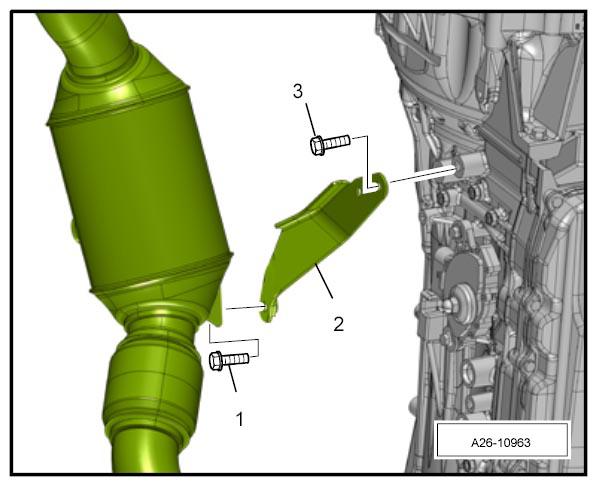

Fig 1: Identifying Right Catalytic Converter Holder
G09931676Courtesy of PORSCHE CARS NORTH AMERICA, INC.
