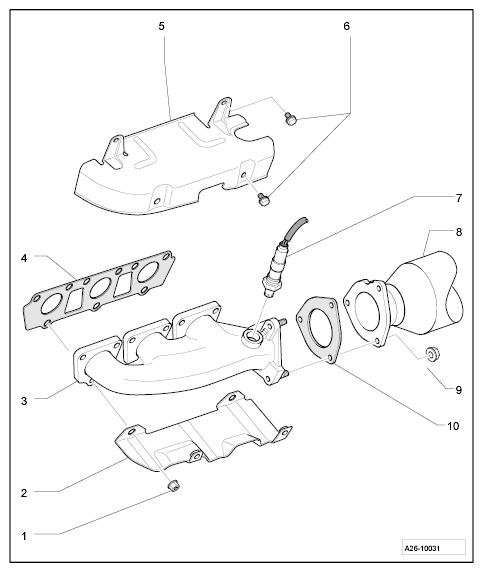

Assembly Overview - Exhaust Manifold
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Nut/replace → Tightening torque: 25 Nm (19 ftlb.)
- Heat shield holder
- Exhaust manifold
- Seal/replace
- Heat shield
- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
- Oxygen sensor upstream of catalytic converter
- Front exhaust pipe with catalytic converter and front silencer
- Nut/replace → Tightening torque: 23 Nm (17 ftlb.)
- Seal/replace
