Assembly Overview - Centre And Rear Silencers

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Screw → Tightening torque: 23 Nm (17 ftlb.)
Suspension/replace if damaged
Suspension/replace if damaged
Screw → Tightening torque: 23 Nm (17 ftlb.)
Suspension/replace if damaged
Nut → Tightening torque: 35 Nm (26 ftlb.)
Front clamping sleeve
Nut → Tightening torque: 35 Nm (26 ftlb.)
Front clamping sleeve
Centre silencer
Suspension/replace if damaged
Screw → Tightening torque: 23 Nm (17 ftlb.)
Left tailpipe → Tightening torque: 30 Nm (22 ftlb.)
Rear silencer
Right tailpipe → Tightening torque: 30 Nm (22 ftlb.)

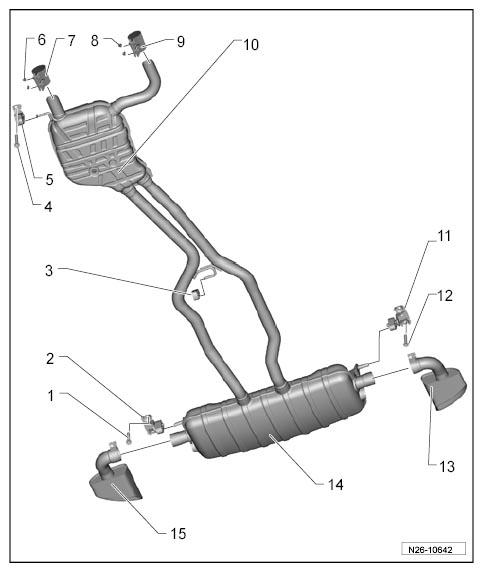

Fig 1: Overview Of Centre And Rear Silencers

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of front clamping sleeves:

Threaded joints are facingoutwards

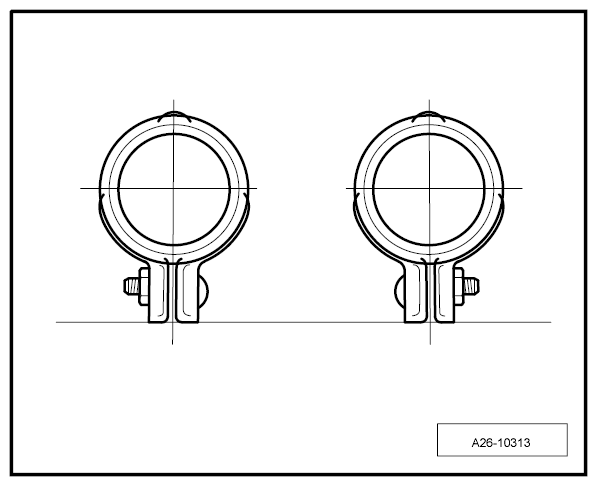

Fig 2: Identifying Front Clamp Installation Position
