Assembly Overview - Air Injection System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Vacuum hose from secondary-air injection valve 1
  2. Right combination valve for secondary air
  3. Screws → Tightening torque: 9 Nm (6.5 ftlb.)
  4. Sender 1 for secondary air pressure
  5. O-ring/replace
  6. Screws → Tightening torque: 5 Nm (3.5 ftlb.)
  7. Left combination valve for secondary air
  8. Vacuum hose from secondary-air injection valve 2
  9. Seal/replace
  10. Hose for secondary air on pressure side
  11. Rubber-metal mount
  12. Motor for secondary air
  13. Holder/riveted to body
  14. Nut → Tightening torque: 9 Nm (6.5 ftlb.)
  15. O-rings/replace if damaged
  16. Hose for secondary air on intake side
  17. Secondary air pipe
  18. Seal/replace

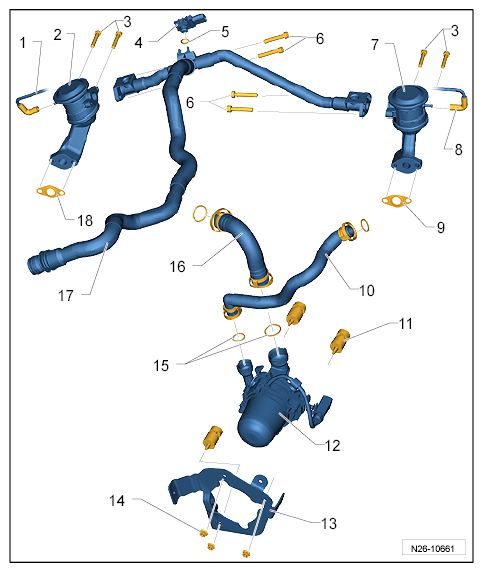

    19. Fig 1: Overview Of Air Injection System
    G09931670Courtesy of PORSCHE CARS NORTH AMERICA, INC.
