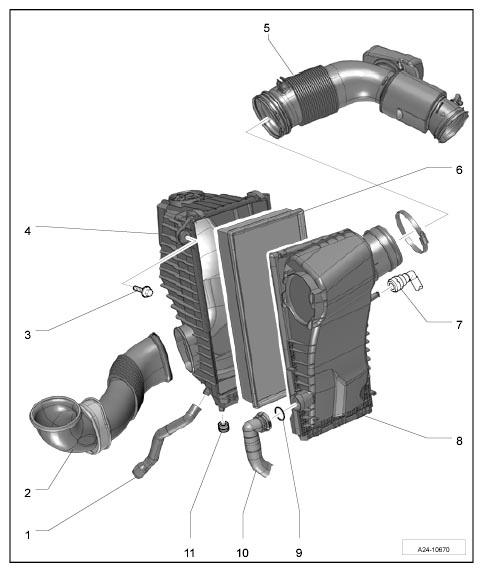

Assembly Overview - Air Cleaner
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Water drain/clean
- Air guide from lock support
- Screw → Tightening torque: 9 Nm (6.5 ftlb.)
- Lower part of air cleaner/clean to remove salt residues, dirt and leaves
- Air guide pipe/clean to remove salt residues, dirt and leaves
- Air-cleaner element
- Vent hose
- Upper part of air cleaner/clean to remove salt residues, dirt and leaves
- O-ring/replace
- Hose for secondary air pump motor
- Rubber sleeve
