Assembly Overview - Drive Head

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw/replace → Tightening torque: 25 Nm (19 ftlb.)
    • Before installation, always clean threaded bores with a thread cutter to remove any residual particles
  2. Drive head
  3. Decoupling spring
  4. Compressor housing

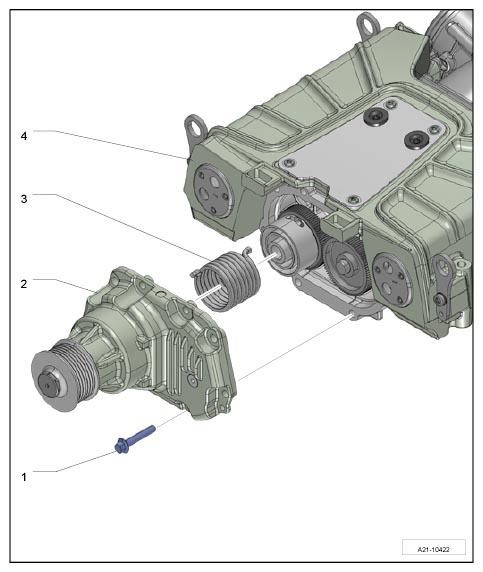

    5. Fig 1: Overview Of Drive Head
    G09931661Courtesy of PORSCHE CARS NORTH AMERICA, INC.
