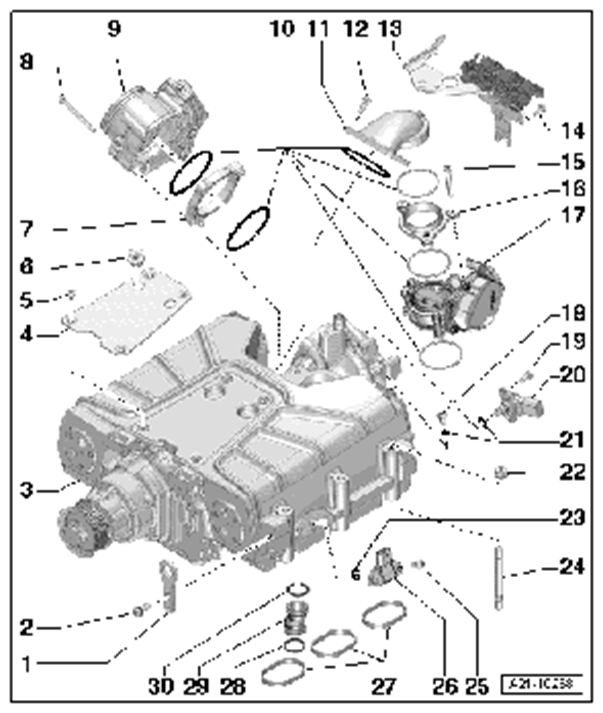

Assembly Overview - Compressor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Engine suspension eyelet
- Screw → Tightening torque: 27 Nm (20 ftlb.)
- Compressor
- Insulation plate
- Screw → Tightening torque: 5 Nm (3.5 ftlb.)
- Rubber sleeve
- Intermediate flange
- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
- Throttle valve control unit
- O-rings/replace
- Connection piece
- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
- Change-over valve holder
- Screw → Tightening torque: 9 Nm (6.5 ftlb.)
- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
- Intermediate flange
- Regulating valve control unit
- Bleeder screw for left charge-air cooler
- Screw/replace → Tightening torque: 10 Nm (7.5 ftlb.)
- Intake air temperature sensor
- O-rings/replace
- Nut → Tightening torque: 20 Nm (15 ftlb.)
- O-ring/replace
- Threaded pin
- Screw/replace → Tightening torque: 10 Nm (7.5 ftlb.)
- Boost pressure sensor
- Seals/replace
- O-ring/replace
- Positive crankcase ventilation adapter
- O-ring/replace
