Assembly Overview - Charge-Air Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Seal/replace
  2. O-ring/replace
    • Coat the charge-air cooler with engine oil during installation
  3. O-ring/replace
    • Coat the charge-air cooler with engine oil duringinstallation
  4. Compressor housing
  5. Seal/replace
  6. Right charge-air cooler
  7. Screw/replace → Tightening torque: 10 Nm (7.5 ftlb.)
  8. Seal
    • Not available individually
    • Must not be separated from charge-aircooler
    • Coat with engine oil duringinstallation
  9. Screw/replace → Tightening torque: 10 Nm (7.5 ftlb.)
  10. Left charge-air cooler
  11. Seal
    • Not available individually
    • Must not be separated from charge-aircooler
    • Coat with engine oil during removal and installation

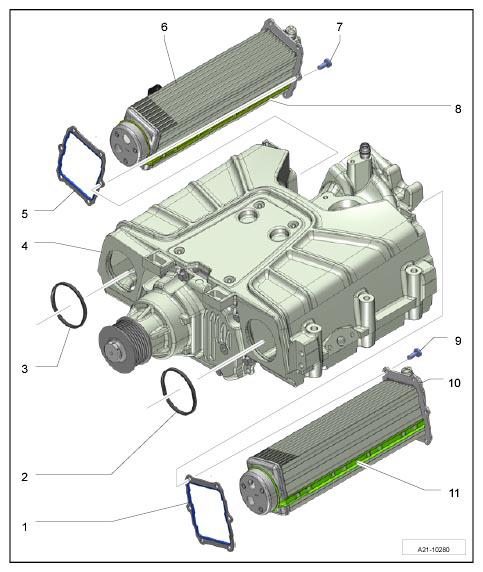

    12. Fig 1: Overview Of Charge-Air Cooler
    G09931660Courtesy of PORSCHE CARS NORTH AMERICA, INC.
