Coolant Pipes On Transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Screw → Tightening torque: 9 Nm (6.5 ftlb.)
Screw → Tightening torque: 9 Nm (6.5 ftlb.)
Right coolant pipe on transmission
Screw → Tightening torque: 9 Nm (6.5 ftlb.)
Screw → Tightening torque: 9 Nm (6.5 ftlb.)
Rear left coolant pipes on transmission
Screw → Tightening torque: 9 Nm (6.5 ftlb.)

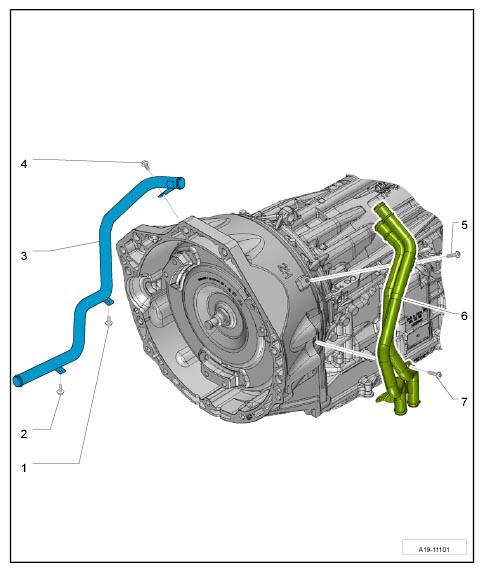

Fig 1: Identifying Transmission Coolant Pipes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
