Assembly Overview - Cooling System For Low-Temperature Cooling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Replace O-rings and seals.
Pull plug-in couplings to make sure they areseated securely.
Tightening torques for M6 screws: 10 Nm (7.5 ftlb.)
Tightening torques for M8 screws: 20 Nm (15 ftlb.)

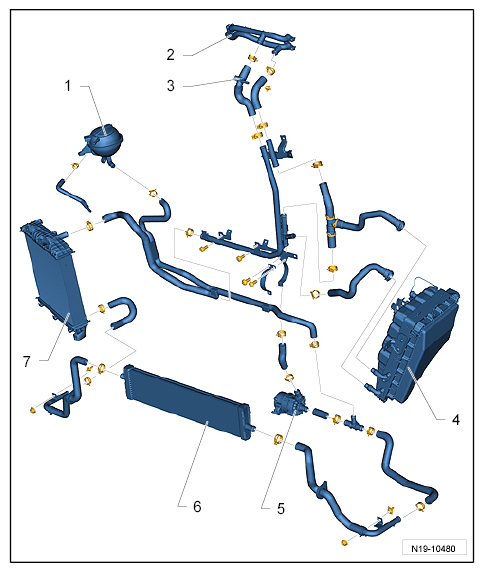

Coolant reservoir
Coolant pipes on charge air cooler
Bleeder valve
Power electronics
Pump for charge-air cooling
Centre cooler for low-temperature cooling
Right cooler for low-temperature cooling

Fig 1: Overview Of Cooling System For Low-Temperature Cooling

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

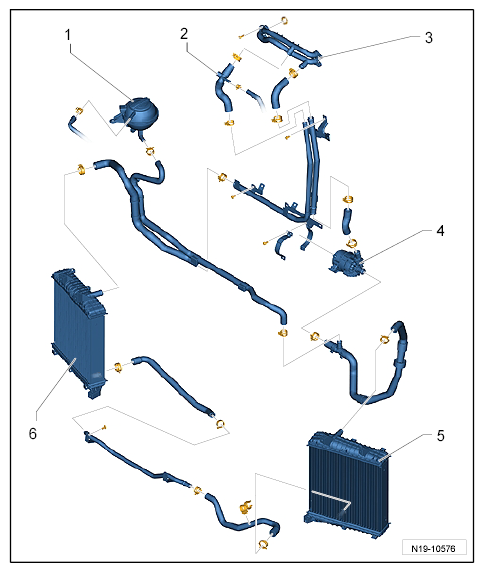

Coolant reservoir
Bleeder valve
Coolant pipes on charge-air cooler
Pump for charge-air cooling
Left cooler for low-temperature cooling, for charge-air cooling
Right cooler for low-temperature cooling, for charge-air cooling

Fig 1: Overview Of Cooling System For Low-Temperature Cooling

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
