Assembly Overview - Cooling System For High-Temperature Cooling
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Replace O-rings and seals.
- Pull plug-in couplings to make sure they areseated securely.
- Tightening torques for M6 screws: 10 Nm (7.5 ftlb.)
- Tightening torques for M8 screws: 20 Nm (15 ftlb.)

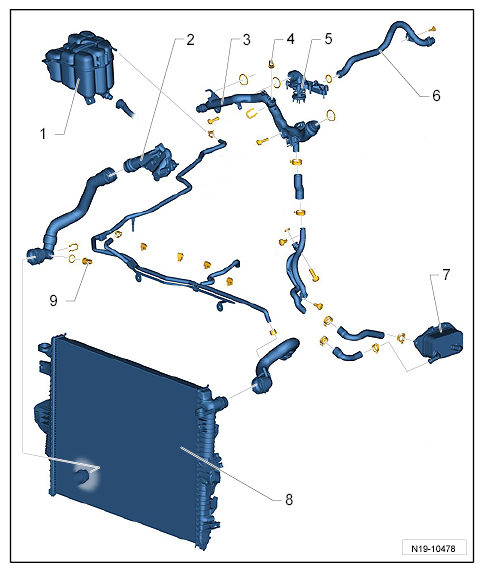

- Coolant reservoir
- Adapter
- Front coolant pipe
- Coolant temperature sensor
- Coolant regulator
- Upper coolant pipe
- Engine oil cooler
- Radiator
- Coolant temperature sensor at cooler output

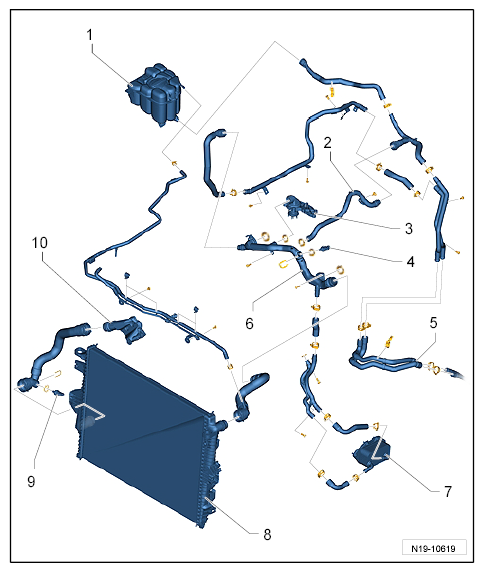

- Coolant reservoir
- Upper coolant pipe
- Coolant regulator
- Coolant temperature sensor
- Coolant pipes to heat exchanger for heater
- Front coolant pipe
- Engine oil cooler
- Radiator
- Coolant temperature sensor at cooler output
