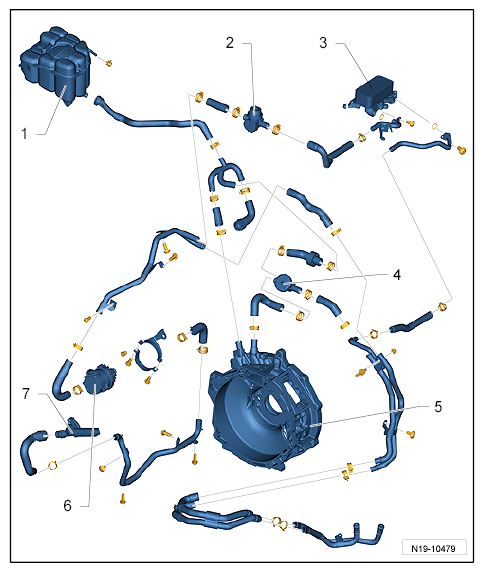

Assembly Overview - Cooling System For Electric Drive Motor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Replace O-rings and seals.
- Pull plug-in couplings to make sure they areseated securely.
- Tightening torques for M6 screws: 10 Nm (7.5 ftlb.)
- Tightening torques for M8 screws: 20 Nm (15 ftlb.)
- Coolant reservoir
- Shut-off valve for transmission oil preheater
- Transmission oil preheater
- Shut-off valve for drive motor cooling
- Drive motor for electric drive
- Coolant run-on pump
- Adapter
