Assembly Overview - Coolant Pipes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

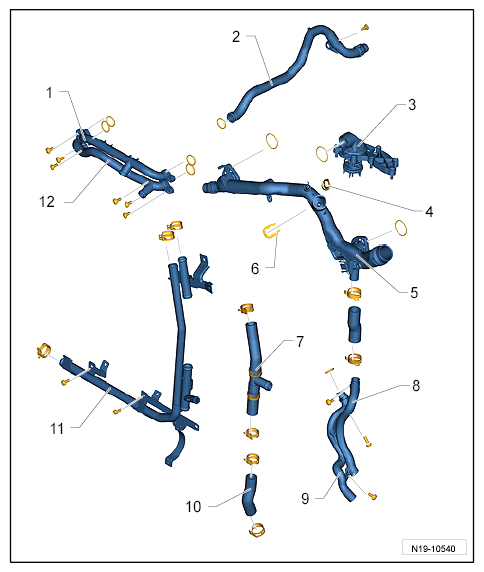

  1. Upper coolant pipe on compressor
  2. Upper coolant pipe
  3. Coolant regulator with housing
  4. Coolant temperature sensor
  5. Front coolant pipe
  6. Retaining clip
  7. T-piece forpower and control electronics for electric drive
  8. Return pipe for engine oil cooler
  9. Supply pipe for engine oil cooler
  10. Hose for charge-air cooling pump
  11. Front coolant pipe
  12. Lower coolant pipe on compressor
    13. Fig 1: Overview Of Coolant Pipes
    G09931650Courtesy of PORSCHE CARS NORTH AMERICA, INC.

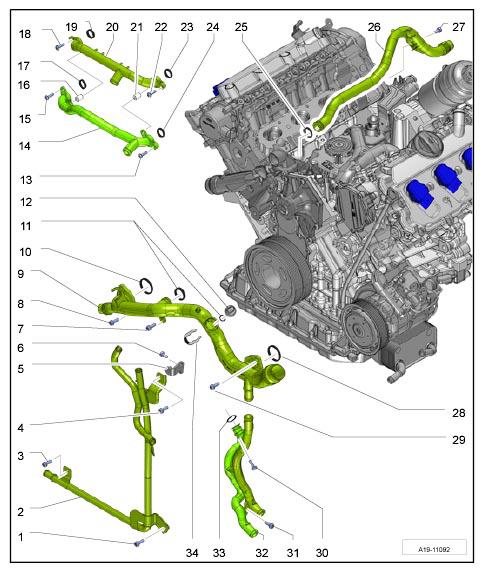

  1. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  2. Coolant pipes, front left
  3. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  4. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  5. Holder
  6. Screw → Tightening torque: 22 Nm (16 ftlb.)
  7. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  8. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  9. Front coolant pipe
  10. Seal/replace
  11. O-ring/replace
  12. Coolant temperature sensor
  13. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  14. Lower coolant pipe on compressor
  15. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  16. Dowel sleeve
  17. Seal/replace
  18. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  19. Seal/replace
  20. Upper coolant pipe on compressor
  21. Dowel sleeve
  22. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  23. Seal/replace
  24. Seal/replace
  25. O-ring/replace
  26. Upper coolant pipe
  27. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  28. Seal/replace
  29. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  30. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  31. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  32. Engine oil cooler pipes
  33. O-ring/replace
  34. Retaining clip
    35. Fig 1: Overview Of Coolant Pipes
    G09931651Courtesy of PORSCHE CARS NORTH AMERICA, INC.
