Installation Positions Of Low-Temperature Cooling Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Coolant reservoir
Power electronics
Pump for charge-air cooling
Centre cooler for low-temperature cooling
Right cooler for low-temperature cooling

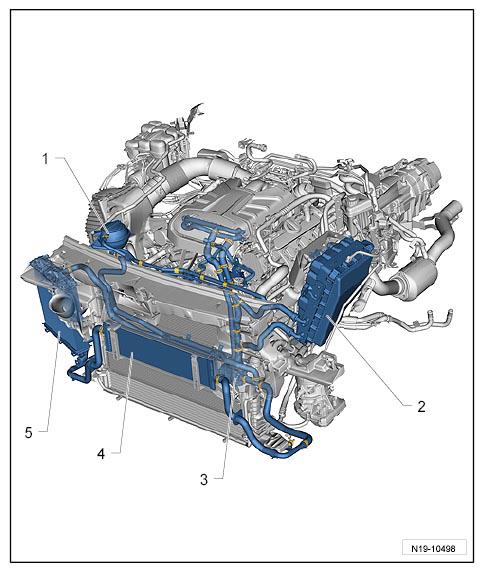

Fig 1: Identifying Low-Temperature Cooling Components Positions

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant reservoir
Pump for charge-air cooling
Centre cooler for low-temperature cooling
Right cooler for low-temperature cooling

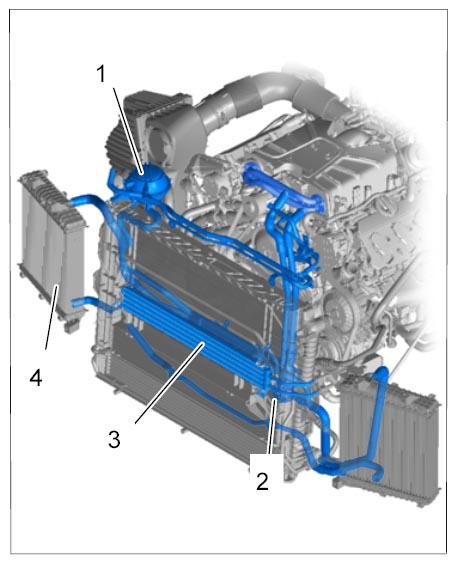

Fig 1: Identifying Low-Temperature Cooling Components Installation Positions

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
