Installation Positions Of High-Temperature Cooling Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

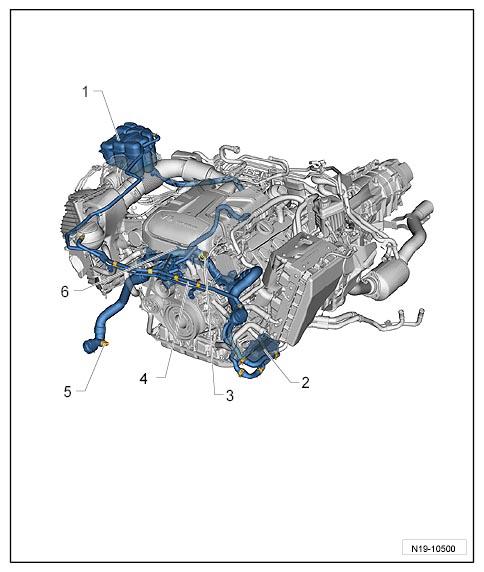

  1. Coolant reservoir
  2. Engine oil cooler
  3. Coolant temperature sensor
  4. Coolant pump
  5. Coolant temperature sensor at cooler output
  6. Coolant regulator
Fig 1: Identifying High-Temperature Cooling Components Installation Positions
G09931640Courtesy of PORSCHE CARS NORTH AMERICA, INC.

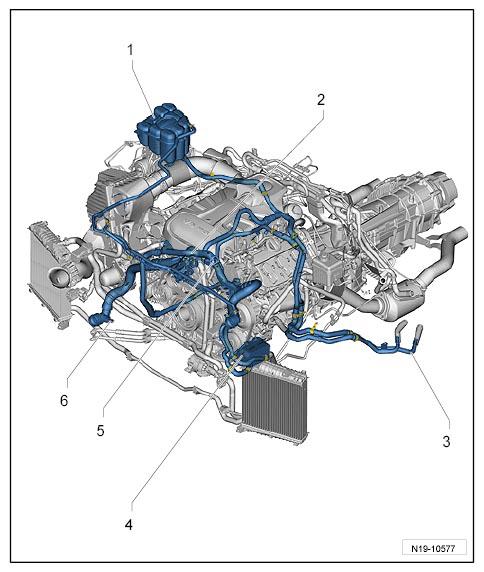

  1. Coolant reservoir
  2. Coolant regulator
  3. Coolant pipes, to heat exchanger for heater
  4. Engine oil cooler
  5. Coolant temperature sensor
  6. Coolant temperature sensor at cooler output
    7. Fig 1: Identifying High-Temperature Cooling Components Installation Positions
    G09931641Courtesy of PORSCHE CARS NORTH AMERICA, INC.
