Connection Diagram For Low-Temperature Coolant Hoses

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coolant reservoir
  2. Charge air cooler
  3. Power and control electronics for electric drive
  4. Pump for charge-air cooling
  5. Centre cooler for low-temperature cooling
  6. Right cooler for low-temperature cooling

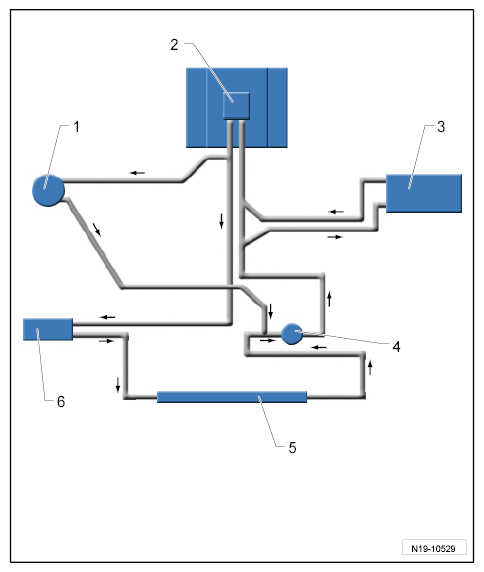

    7. Fig 1: Low-Temperature Coolant Hoses Connection Diagram
    G09931655Courtesy of PORSCHE CARS NORTH AMERICA, INC.
