Connection Diagram For High-Temperature Coolant Hoses

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

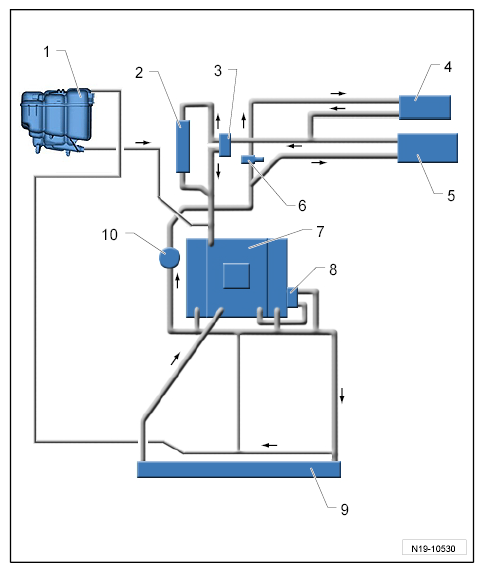

  1. Coolant reservoir
  2. Drive motor for electric drive
  3. Shut-off valve for drive motor cooling system
  4. ATF preheater
  5. Heat exchanger
  6. Shut-off valve for ATF preheater
  7. Engine
  8. Engine oil cooler
  9. Radiator with ATF cooler and condenser
  10. Coolant run-on pump
    11. Fig 1: High-Temperature Coolant Hoses Connection Diagram
    G09931654Courtesy of PORSCHE CARS NORTH AMERICA, INC.
