Connection Diagram For Coolant Hoses

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Blue = large cooling system
Red = small cooling system
Orange = cooling system for charge-air cooler
Brown = heating system
The arrows are pointing in direction of flow of coolant
1. Right cooler for charge-air cooling system
2. Bleeder screw
3. Radiator with integrated ATF cooler
4. Coolant temperature sensor
5. Pump for charge-air cooling
6. Generator
7. Right charge-air cooler in compressor housing
8. Bleeder screw
9. Coolant reservoir
10. Cap for coolant reservoir
11. to heat exchanger for heater
12. Cylinder head, bank 1 (right)
13. from heat exchanger for heater
14. Coolant pump
15. Cylinder head, bank 2 (left)
16. Bleeder screw
17. Left charge-air cooler in compressor housing
18. Coolant regulator
19. Engine oil cooler
20. Not installed
21. Check valve
22. Bleeder screw
23. Left cooler for charge-air cooling system
24. Check valve

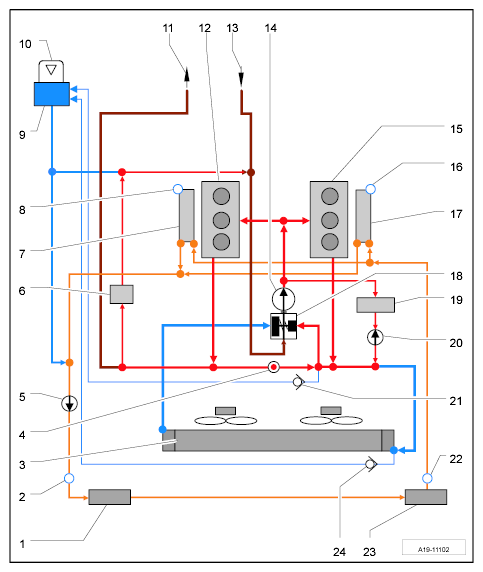

Fig 1: Coolant Hoses Connection Diagram
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
