Left Timing Chain Cover/Tightening Torque And Tightening Sequence

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Replace screws that are tightened to an additional torque angle.

Tighten the holders -arrows A, B- together with the left timing chain cover.

Tighten screws in 2 steps in the sequence shown:

Step	Screws	Tightening torque/torque angle
1.	1... 8	5 Nm (3.5 ftlb.)
2.	1... 8	Turn 90° further

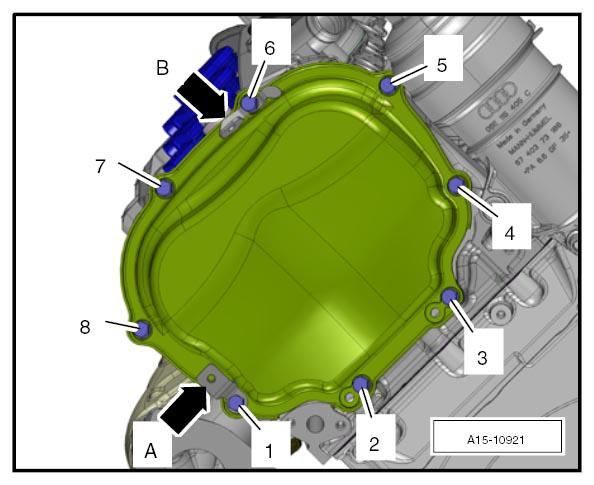

Fig 1: Locating Left Timing Chain Cover Holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
