Left Timing Chain

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Screw/replace → Initial tightening: 80 Nm (59 ftlb.) → Final tightening: +90°
Screw/replace → Initial tightening: 80 Nm (59 ftlb.) → Final tightening: +90°
Camshaft sprocket, for outlet camshaft
Camshaft controller, for intake camshaft
- "in-take" marking
Left timing chain
- For re-installation, mark rolling direction with paint/colormarker
- Remove from camshafts
Screw → Tightening torque: 9 Nm (6.5 ftlb.)
Slide
Chain tensioner, for left timing chain
Bearing plate, for drive sprocket
Screw/replace → Initial tightening: 8 Nm (6 ftlb.) → Final tightening: +45°
Drive sprocket, for left timing chain
Bearing pin, for drive sprocket for left timing chain
Screws/replace → Initial tightening: 5 Nm (3.5 ftlb.) → Final tightening: +60 Nm (+44 ftlb.)

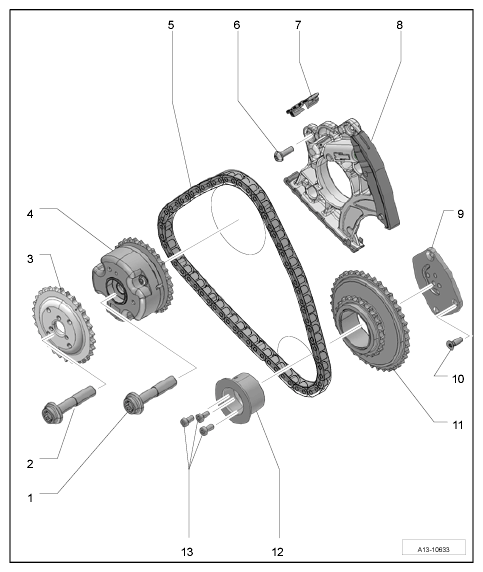

Fig 1: Identifying Left Timing Chain Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
