Assembly Overview - Drive Chain For Auxiliary Drives

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Crankshaft
  2. Drive chain, for auxiliary drives
    • For re-installation, mark rolling direction with paint/colormarker
  3. Drive sprocket, for oil pump
    • Installation position: Side with lettering towards engine
  4. Screw/replace → Initial tightening: 30 Nm (22 ftlb.) → Final tightening: +90°
  5. Compression spring
  6. Screw/replace → Initial tightening: 15 Nm (11 ftlb.) → Final tightening: +90°
  7. Sprocket for balance shaft
    • Installation position: Side with lettering towards engine
  8. Chain tensioner with guide rail
  9. Screw/replace → Initial tightening: 10 Nm (7.5 ftlb.) → Final tightening: +45°

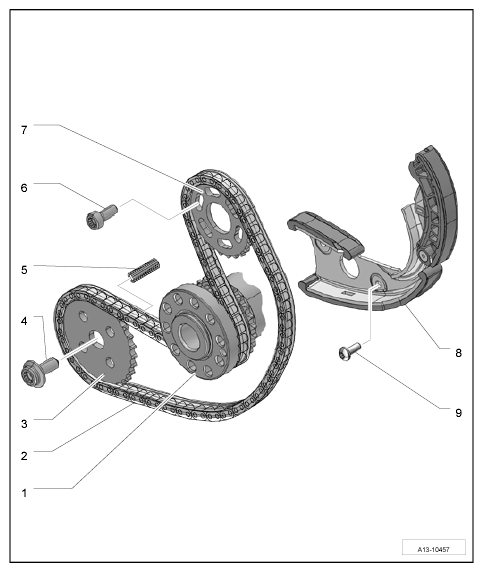

    10. Fig 1: Overview Of Drive Chain (Auxiliary Drives)
    G09931625Courtesy of PORSCHE CARS NORTH AMERICA, INC.
