Assembly Overview - Cylinder Head

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Cylinder-head gasket/replace
  2. Cylinder head
  3. Screw
  4. Vacuum pump
  5. O-ring/replace
  6. Hall sender
  7. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  8. Screw/replace → Initial tightening: 40 Nm (30 ftlb.) → Tightening torque: +90° → Final tightening: +90°
  9. Ignition coil
  10. Cylinder head cover
  11. Seal/replace if damaged or leaking
  12. Cover
  13. Screw/replace if seal is damaged → Tightening torque: 9 Nm (6.5 ftlb.)
  14. Screw → Tightening torque: 5 Nm (3.5 ftlb.)
  15. Connector strip for ignition coils
  16. Cylinder head cover seal/replace if seal is damaged
  17. Solenoid valve for camshaft control on intake side
  18. Screw/replace → Tightening torque: 5 Nm (3.5 ftlb.)
  19. O-ring/replace

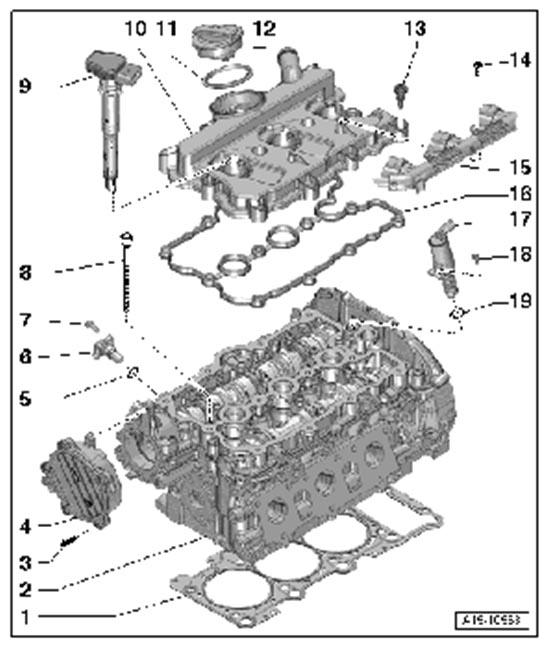

    20. Fig 1: Overview Of Cylinder Head
    G09931626Courtesy of PORSCHE CARS NORTH AMERICA, INC.
