Assembly Overview - Timing Chain Covers

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw
  2. Shaft seal, for crankshaft at transmission side/replace
  3. Screw
  4. Dowel sleeve
  5. Lower timing chain cover
  6. Threaded pin
  7. Cylinder-head gasket
  8. Screw/replace
  9. Holder, for wire harness
  10. Holder, for wire harness
  11. Screw/replace
  12. Left timing chain cover
  13. Seal/replace
  14. Seal/replace
  15. Right cylinder head gasket
  16. Right timing chain cover
  17. Nut → Tightening torque: 9 Nm (6.5 ftlb.)
  18. Holder, for electric lines
  19. Threaded pin
  20. Holder, for heat shield
  21. Screw/replace
  22. Dowel sleeve
  23. Screw/replace
  24. Cover
  25. Engine speed sender
  26. Screw
  27. Cover, for engine speed sender

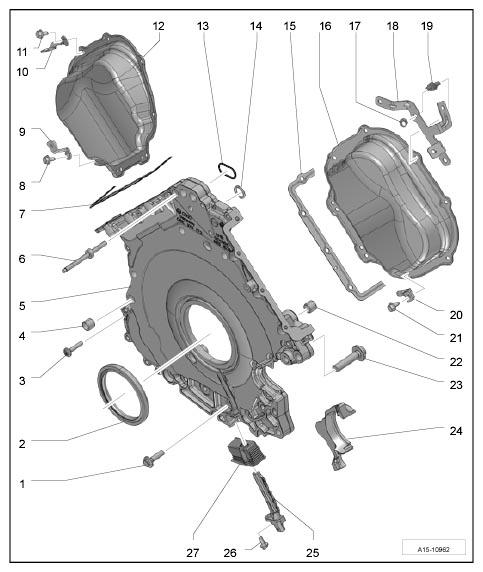

    28. Fig 1: Overview Of Timing Chain Covers
    G09931618Courtesy of PORSCHE CARS NORTH AMERICA, INC.
