Replace screws1...16 for guideframe

Fit long screws in the inner row of the guide frame.

Tighten screws1...31 in three steps as follows:

Step	Screws	Tightening torque/torque angle
1.	1... 16	50 Nm (37 ftlb.)
2.	1... 16	Turn 90° further
3.	17... 31	20 Nm (15 ftlb.) +90°

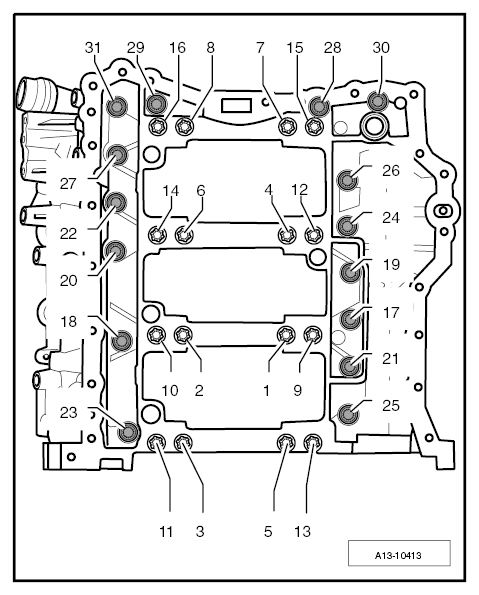

Fig 1: Identifying Guide Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
