Assembly Overview - Poly-V-Belt Drive For Compressor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Poly-V-belt for compressor
  2. Screw → Tightening torque: 42 Nm (31 ftlb.)
  3. Washer
  4. Cover
  5. Compressor
  6. Deflection roller for poly-V-belt
  7. Vibration damper
  8. Screw/replace → Initial tightening: 20 Nm (15 ftlb.) → Final tightening: 90°
  9. Tensioning element for poly-V-belt
  10. Screw → Tightening torque: 40 Nm (30 ftlb.)

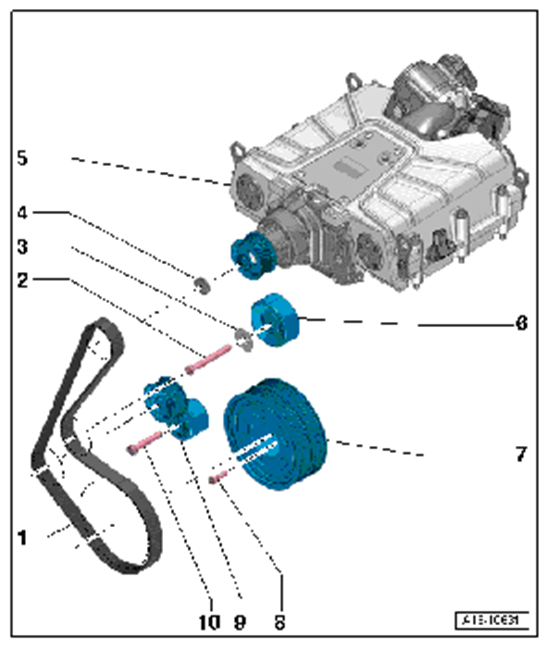

    11. Fig 1: Overview Of Compressor V-Belt Drive
    G09931612Courtesy of PORSCHE CARS NORTH AMERICA, INC.
